GIGABYTE MB Sc sTR5 TRX50 AERO D, AMD TRX50, 4xDDR5, WI-FI, E-ATX

Formát:E-ATX; Chipset:AMD TRX50; Socket (pätica):Socket TRX5; Typ pamäťového modulu:DDR5; Podpora RAID:0, 1, 10; PCI express 16x:3.... viac
Bežná cena: 843  (-5%)
661.98 € bez DPH
Skladom 1 ks
801 €
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Kód: 524888
EAN: 4719331859480
Záruka: 36 Měsíc(ů)
Výrobca: Gigabyte
Popis a parametre

GIGABYTE MB Sc sTR5 TRX50 AERO D, AMD TRX50, 4xDDR5, WI-FI, E-ATX

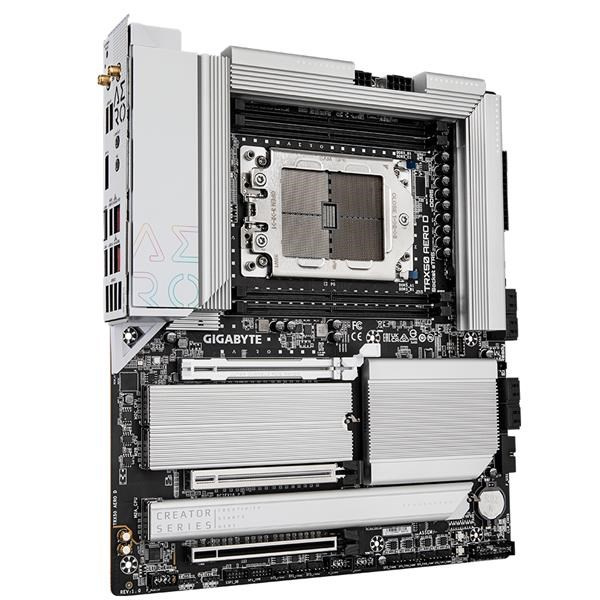

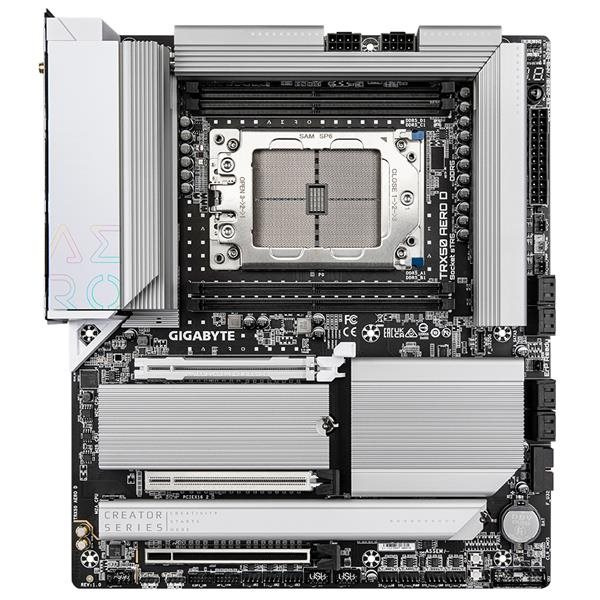

GIGABYTE TRX50 AERO D

  • Supports AMD Ryzen™ Threadripper™ PRO 7000 series/ Ryzen™ Threadripper™ 7000 series Processors?
  • Breakthrough Performance:16+8+4 Phases Digital VRM Solution
  • Quad Channel DDR5:4*SMD R-DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • Reinforced Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Ultimate Scalibility: 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
  • Next-genConnectivity: Dual USB4® Type-C ports
  • Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7
  • PCIe UD Slot X:PCIe 5.0 x16 slot with 10X strength for graphics card
  • EZ-Latch Click:M.2 heatsinks with screwless design
  • EZ-Latch Plus:M.2 slots with quick release design
  • Hi-Fi Audio with DTS:X® Ultra:ALC4080+ALC897 CODEC
  • UC BIOS:User-Centred intuitive UX with Quick Access function


CPU

AMD Socket sTR5, support for:
AMD Ryzen™ Threadripper™ PRO 7000 processors / AMD Ryzen™ Threadripper™ 7000 Series processors
(Go to GIGABYTE's website for the latest CPU support list.)



Chipset

AMD TRX5



Memory

Support for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS)
4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory
Quad channel memory architecture
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)



Audio

Realtek® ALC4080 CODEC (rear panel audio)
- Support for DTS:X® Ultra
- High Definition Audio
- 2-channel
Realtek® ALC897 CODEC (front panel audio)



LAN

Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)



Wireless Communication module

Qualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Note:
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations.



Expansion Slots

CPU:
- 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)



Storage Interface

CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)
CPU+Chipset:
- 8 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices



USB

CPU:
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+Intel® JHL8540 USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
CPU+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers



Internal I/O Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
4 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x Clear CMOS button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper

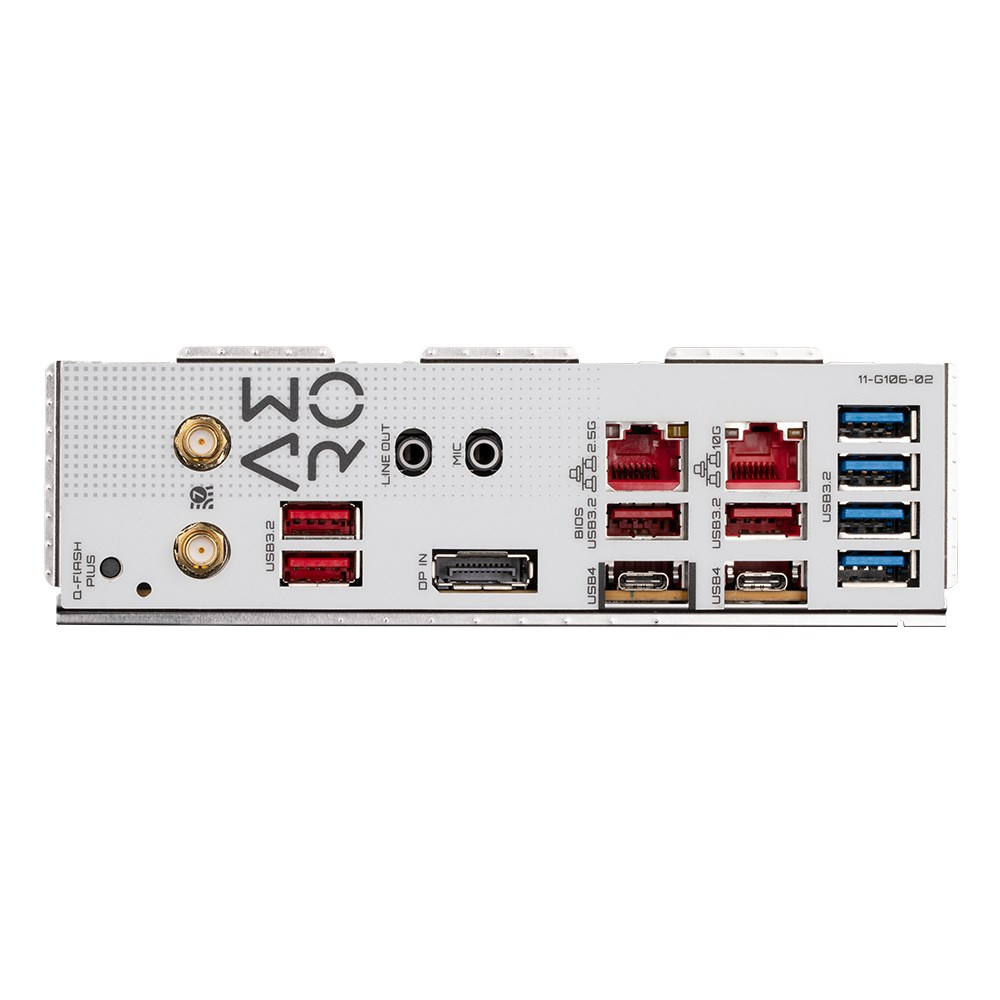

Back Panel Connectors

1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort In port
1 x USB4® USB Type-C® port (DisplayPort)
1 x USB4® USB Type-C® port
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x RJ-45 ports
2 x audio jacks



I/O Controller

iTE® I/O Controller Chip



H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection



BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus



Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software



Operating System

Support for Windows 11 64-bit



Form Factor

E-ATX Form Factor; 30.5cm x 26.4cm


.
Technologie paměti RAM
DDR5
Socket (patice)
Socket TRX5
Formát základní desky
E-ATX
Chipset
AMD TRX50
PCI Express x16
3
Podpora RAID
10
COM port
Ne
3.5mm Jack
Ano
LPT port
Ne
Bezdrátové připojení
WiFi + Bluetooth
Pro procesory
AMD
Počet paměťových slotů
4
DisplayPort
0
TPM
Ano
USB 2
4
USB 3
10
PCI
0
M.2 slot
4
SATA 3
8
VGA
0
DVI
0
HDMI
0
LAN
2.5Gbit/s
PCI Express x1
0
Led Header
Ano
USB C
3
DisplayPort Type-C
0
Počet Thunderbolt
0
