GIGABYTE MB Sc LGA1700 B760M H DDR4, Intel B760, 2xDDR4, 1xHDMI, 1xVGA, mATX

Formát:micro ATX; Chipset:Intel B760; Socket (pätica):Socket 1700; Typ pamäťového modulu:DDR4; Podpora RAID:0, 1, 5, 10; PCI express 16x:1.... viac
Bežná cena: 112  (-1%)
91.74 € bez DPH
Skladom > 5 ks
111 €
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Kód: 524803
EAN: 4719331854645
Záruka: 36 Měsíc(ů)
Výrobca: Gigabyte
Popis a parametre

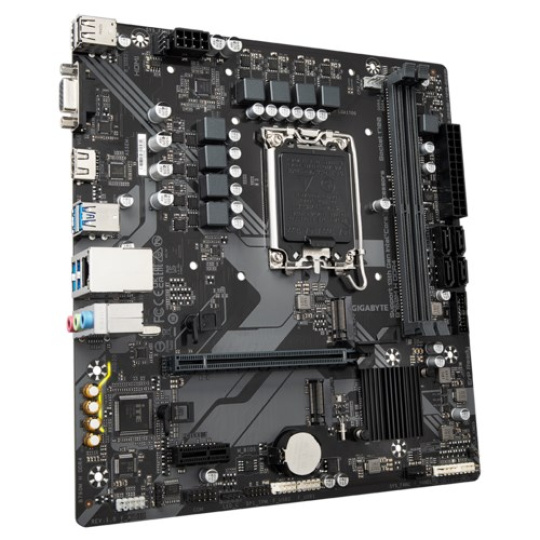

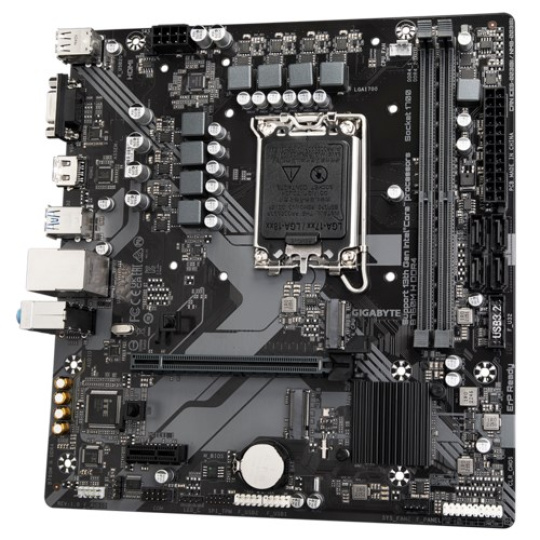

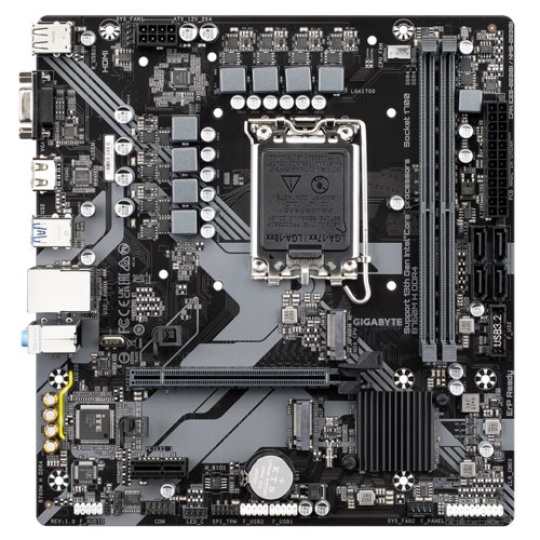

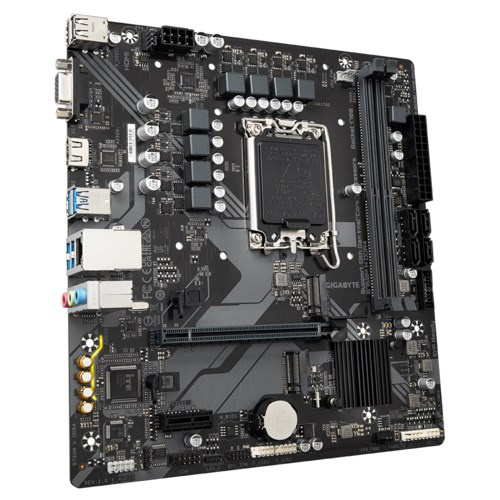

GIGABYTE MB Sc LGA1700 B760M H DDR4, Intel B760, 2xDDR4, 1xHDMI, 1xVGA, mATX

GIGABYTE B760M H DDR4

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance:Hybrid 6+1+1 Phases Digital VRM Solution
  • Dual Channel DDR4:2*DIMMs XMP Memory Module Support
  • Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
  • EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
  • Fast Networks:GbE LAN
  • Extended Connectivity:HDMI, D-Sub
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
(Please refer to "CPU Support List" for more information.)

Chipset

Intel® B760 Express Chipset

Memory

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)

Storage

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Expansion Slots

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

USB

Chipset:
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

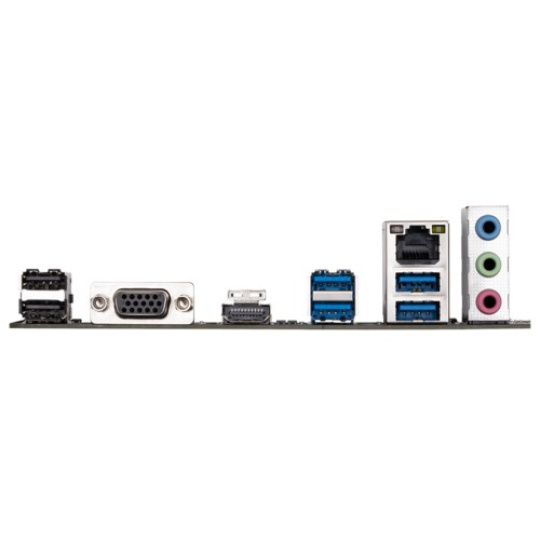

Back Panel I/O Ports

2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash

Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor
23.0cm x 21.5cm


.
Technologie paměti RAM
DDR4
Socket (patice)
Socket 1700
Formát základní desky
micro ATX
Chipset
Intel B760
PCI Express x16
1
Podpora RAID
1
Podpora RAID
5
Podpora RAID
10
Podpora RAID
0
3.5mm Jack
Ano
Pro procesory
Intel
Počet paměťových slotů
2
DisplayPort
0
TPM
Ano
USB 2
6
USB 3
6
M.2 slot
2
SATA 3
4
VGA
1
DVI
0
HDMI
1
LAN
1Gbit/s
PCI Express x1
1
Led Header
Ano
