FRACTAL DESIGN zdroj Ion 550W GOLD, modular, 80+ Gold

Výkon zdroja (vo W):550; Konektory:PCIe 8-pin, SATA 15-pin; Konektory pre základnú dosku:ATX 24-pin.... viac
Bežná cena: 109  (-13%)
78.51 € bez DPH
Na dotaz
95 €
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Popis a parametre

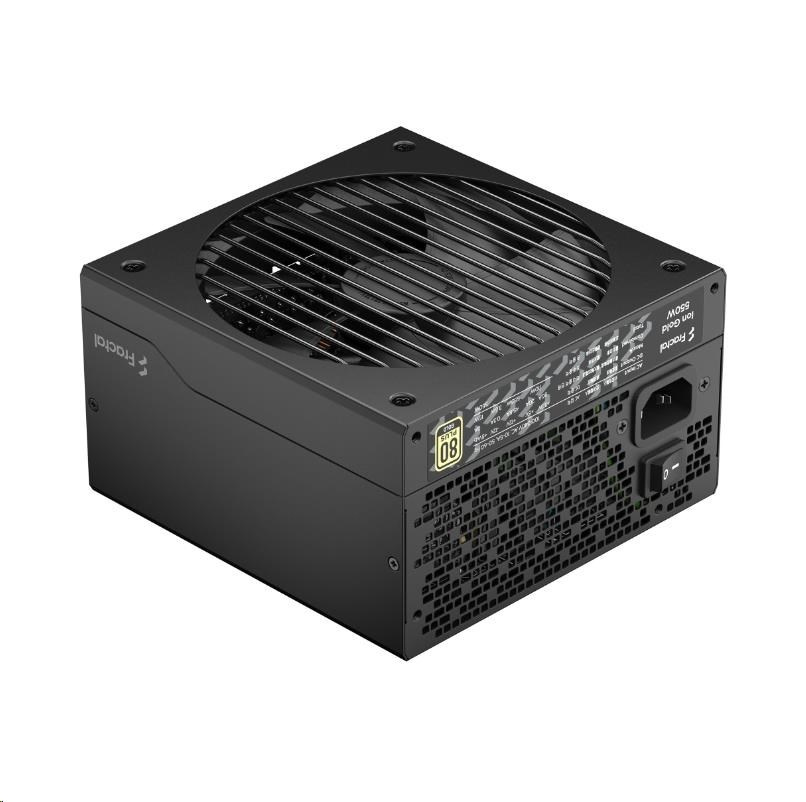

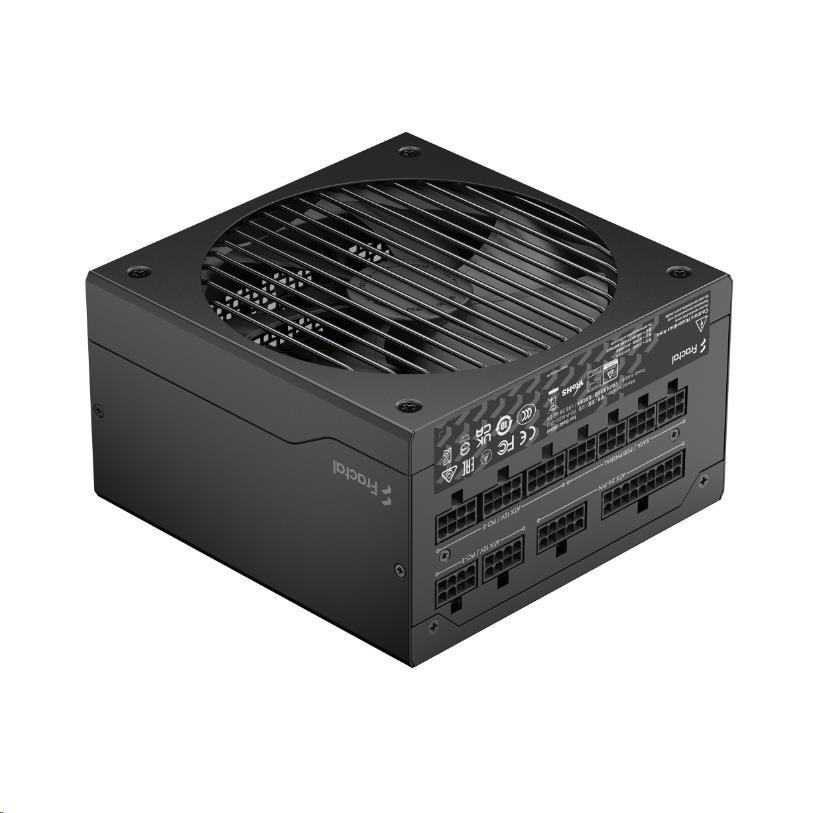

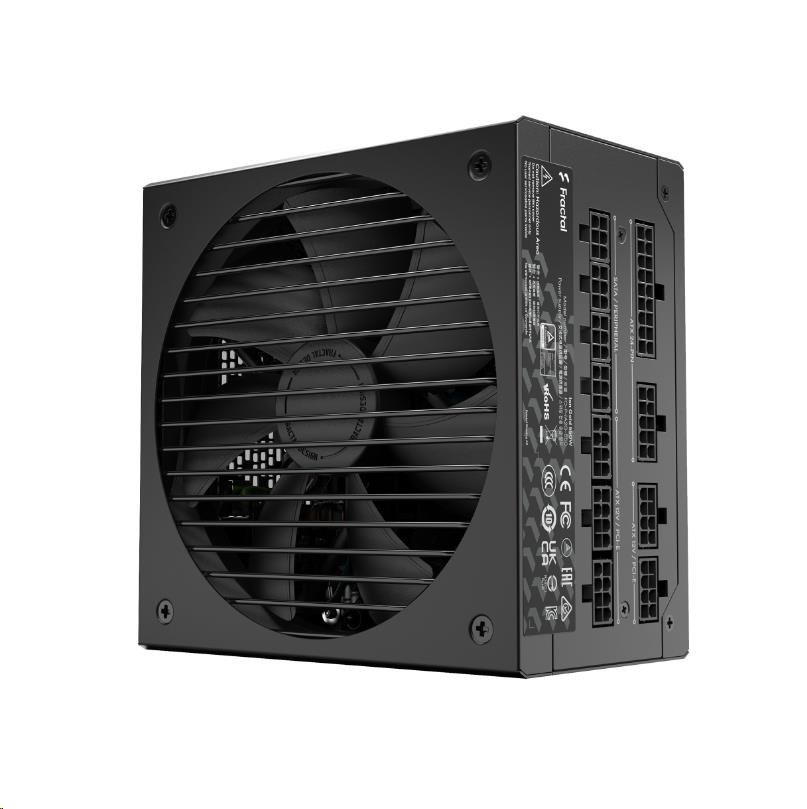

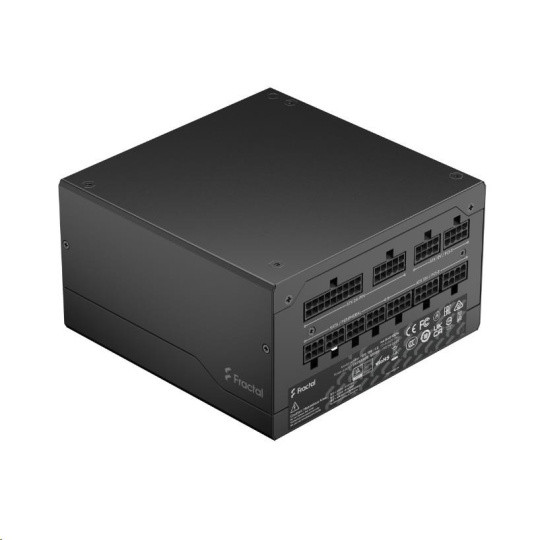

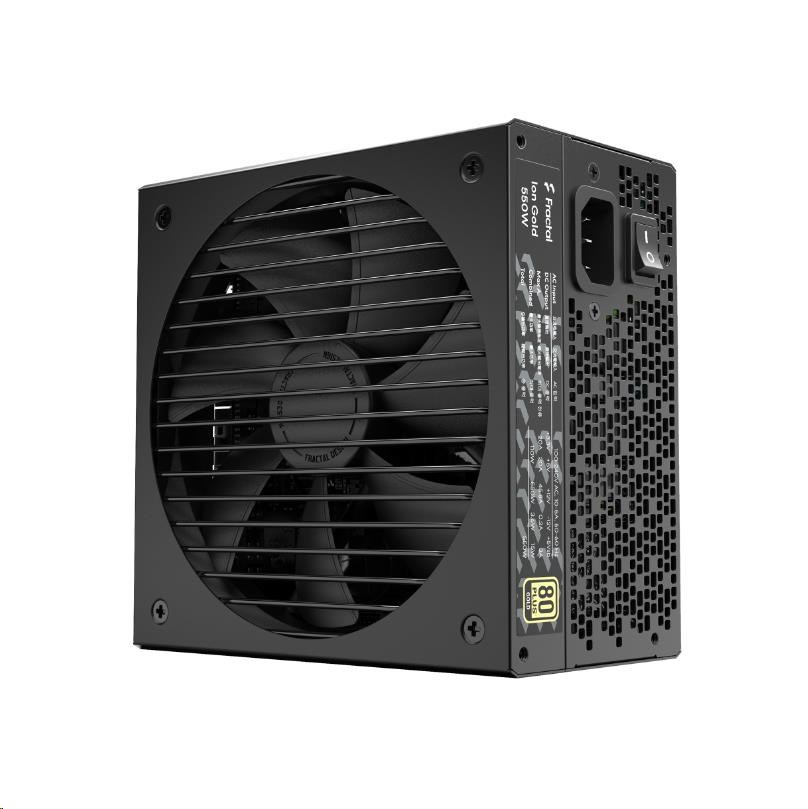

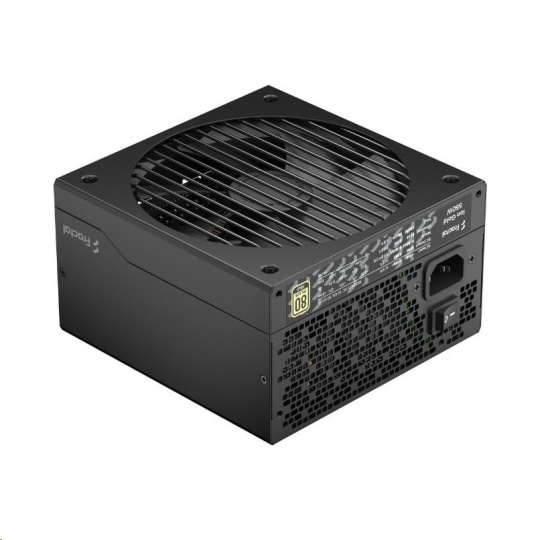

FRACTAL DESIGN zdroj Ion 550W GOLD, modular, 80+ Gold

Ion Gold 550W

The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation and a big 140 mm Dynamic series fan. Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability.

  • 80PLUS® Gold Efficiency rating for reduced noise and energy consumption
  • Premium Japanese 105°C capacitor(s) on the primary side for superior reliability and durability

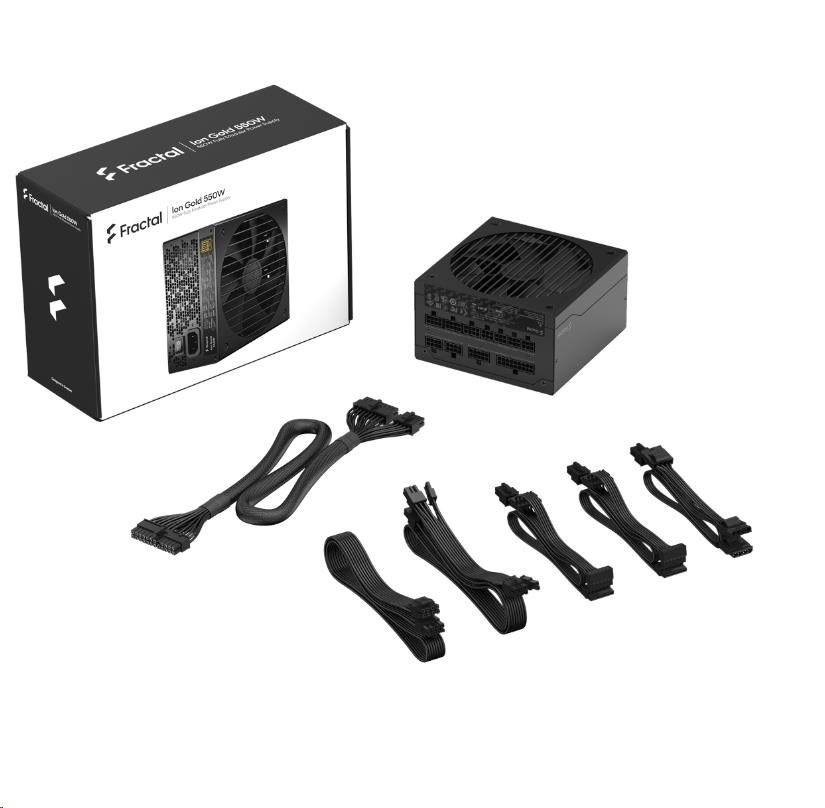

  • Fully modular design for reduced clutter and maximum ease of installation

TECHNICAL SPECIFICATIONS

80PLUS® certification Gold
Modular cables Fully Modular

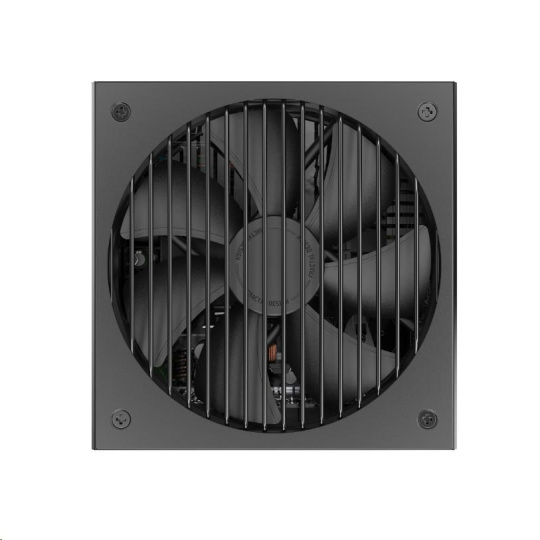

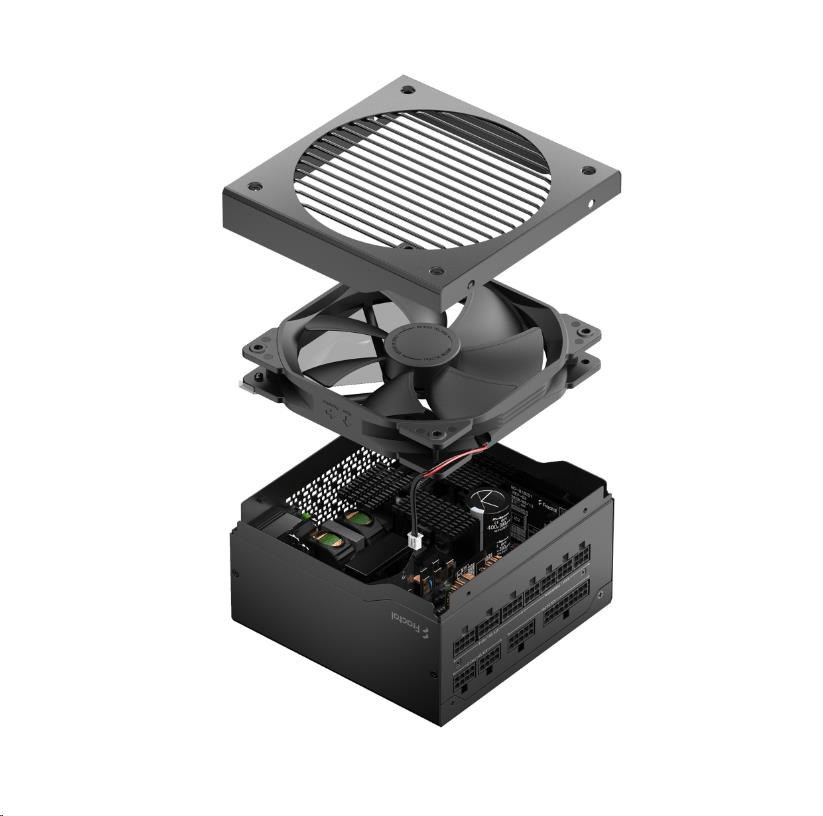

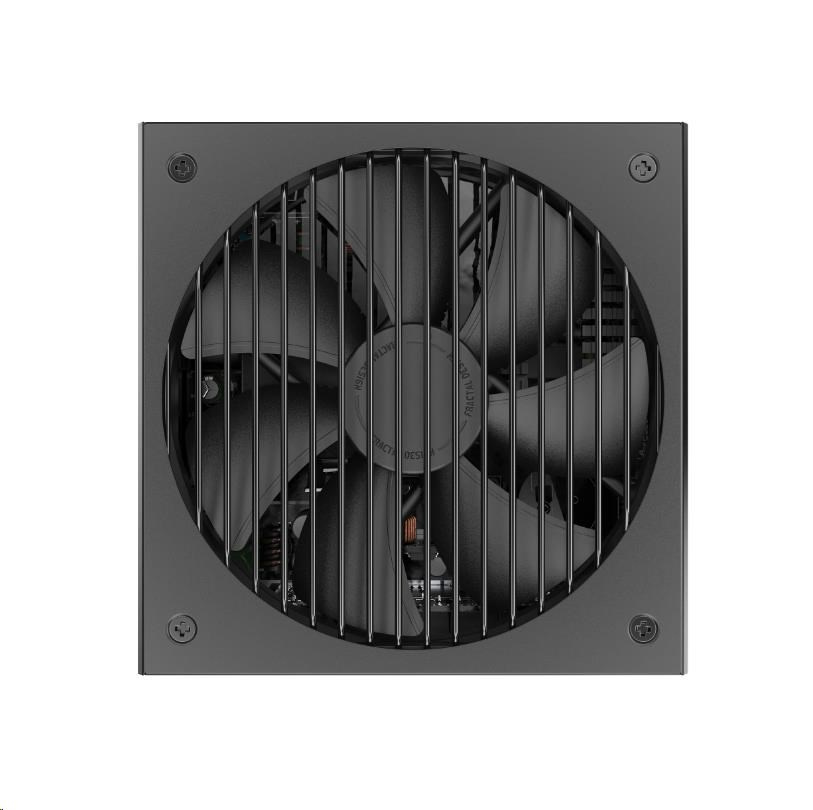

Fan type 140 mm LLS bearing Fractal Design Dynamic series fan
Maximum operating temperature (full load) 40°C, 50°C at 80% load
Semi-passive operation No
Capacitors Primary side: Japanese 105° main bulk capacitor(s), Secondary side: Taiwanese 105°C electrolytic & solid-state capacitors
Life expectancy 100,000 hours
Cable type Modular 24-pin cable: Black wires in braided sleeve, Other modular cables: Flat black wires
Input voltage 100-240V AC
Input frequency 50-60 Hz
Input current 10A/5A
Protection features Over voltage protection, Under voltage protection, Over-power protection, Short circuit protection, Over current protection, Over temperature protection
PSU specification compliance ATX12V 2.52; EPS12V 2.92
PSU color Black
Sleep state compliance C6/C7 compatible
Approvals & certifications CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Warranty 7 years

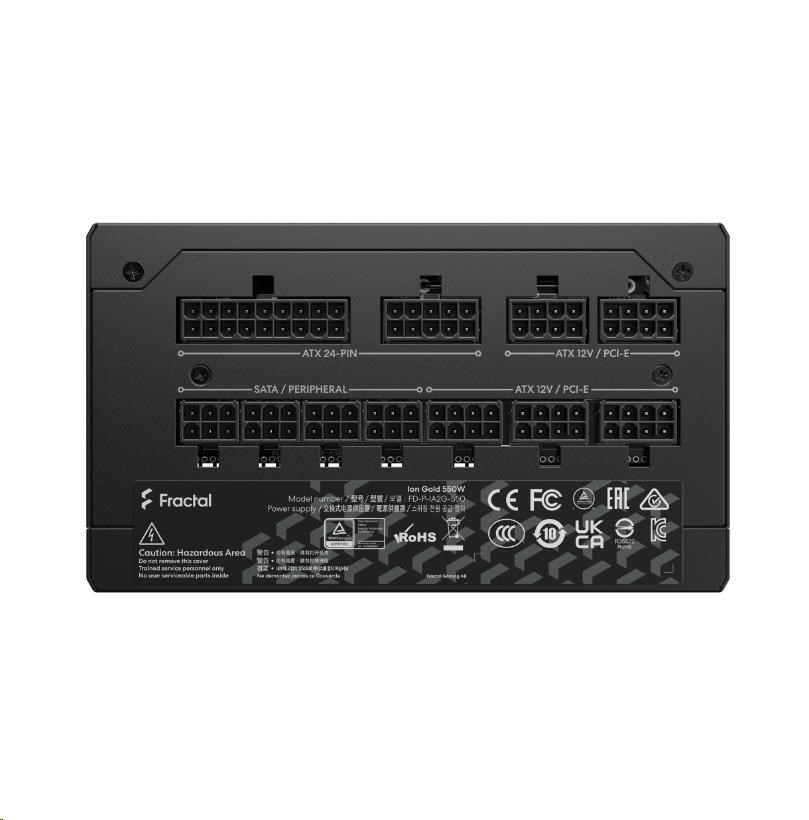

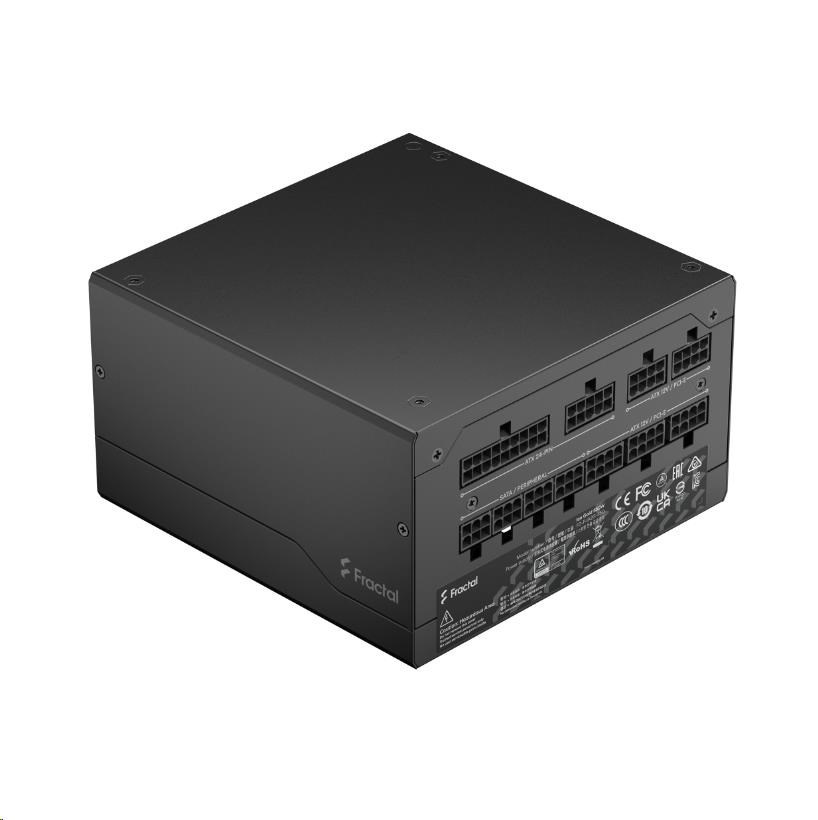

Connectors
ATX 24-pin 1
EPS/ATX12V 1
PCIe 2
SATA 6
Peripheral 6
DC Output
3.3V 20A
5V 20A
3.3V and 5V combined 110W
12V 45.8A
-12V 0.3A
+5Vsb 3A
Total Power 550W
Cable Configuration (length in mm between connectors)
ATX 24-pin 500
ATX 12V 4+4 pin 600
EPS12V 8-pin N/A
PCIe 6+2 pin 550+150
SATA 500+150+150
Peripheral 500+150+150

.
Výkon zdroje (ve W)
550
Konektory
SATA 15-pin
Konektory
PCIe 8-pin
Konektory pro základní desku
ATX 24-pin
Efektivita zdroje
80 Plus Gold
Modulární kabeláž
Ano
