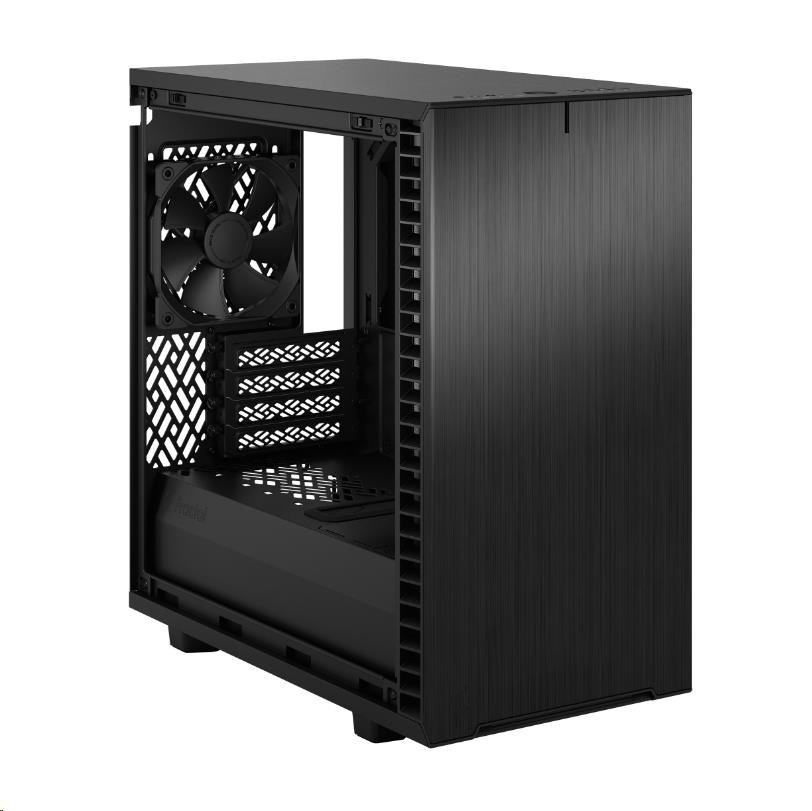

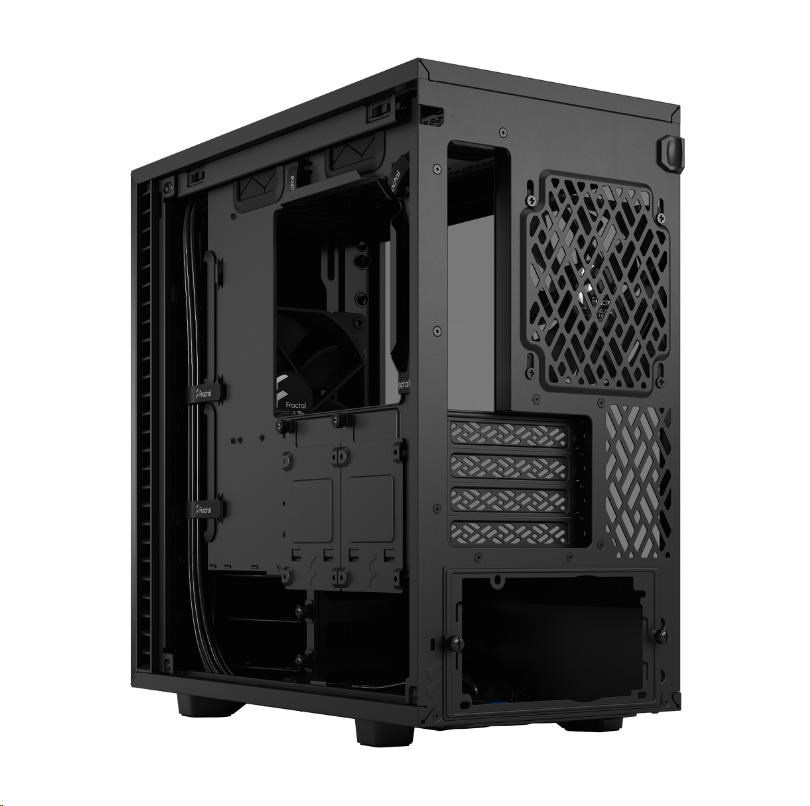

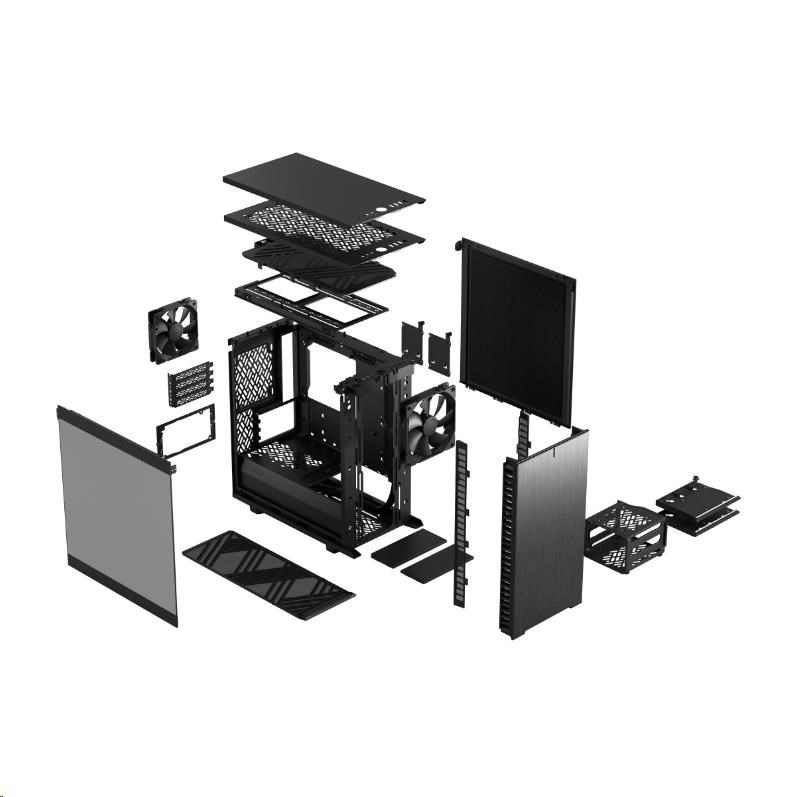

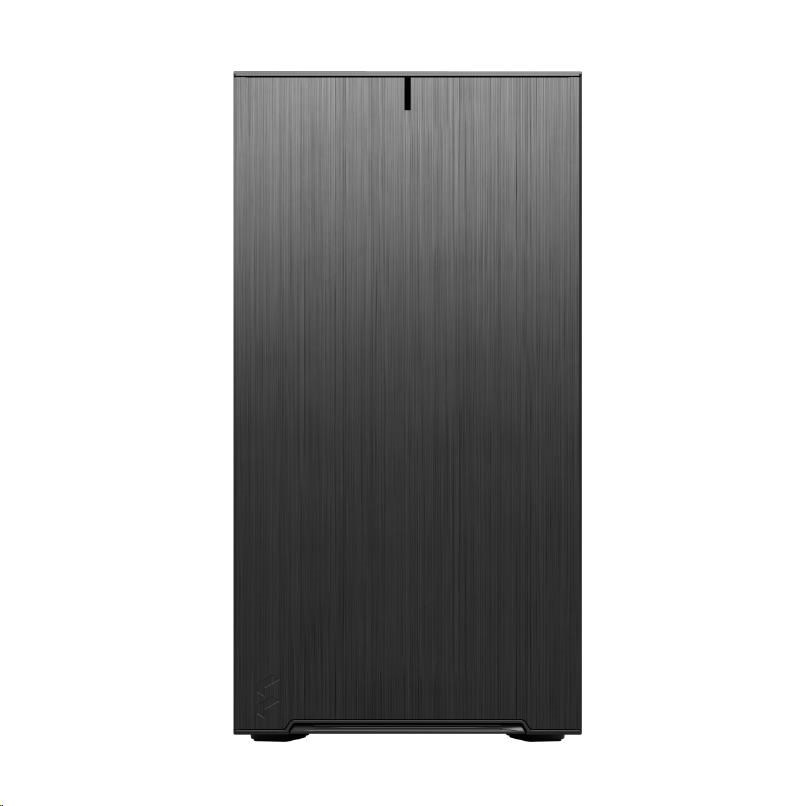

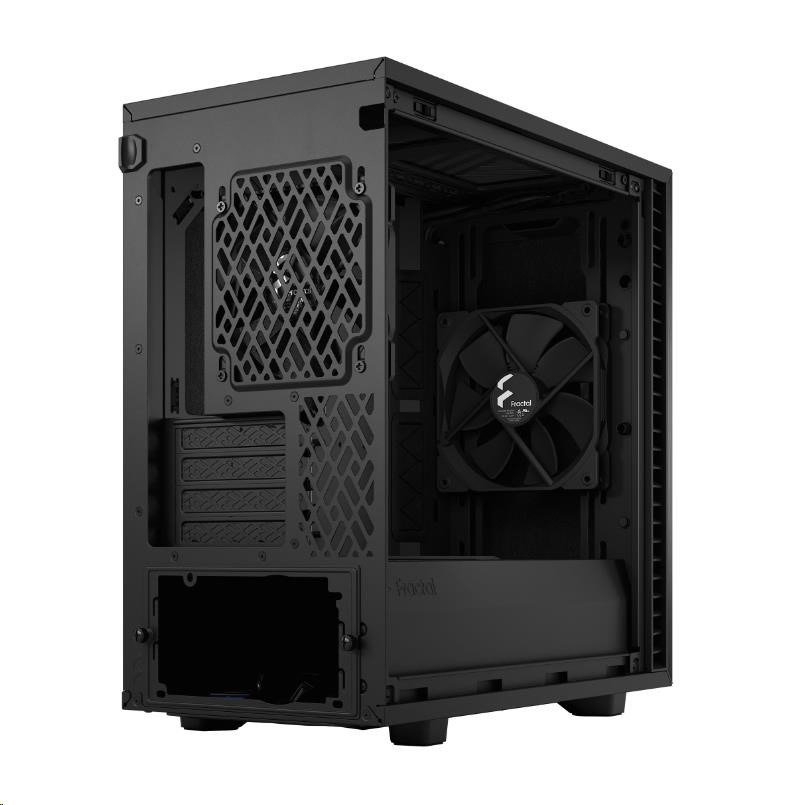

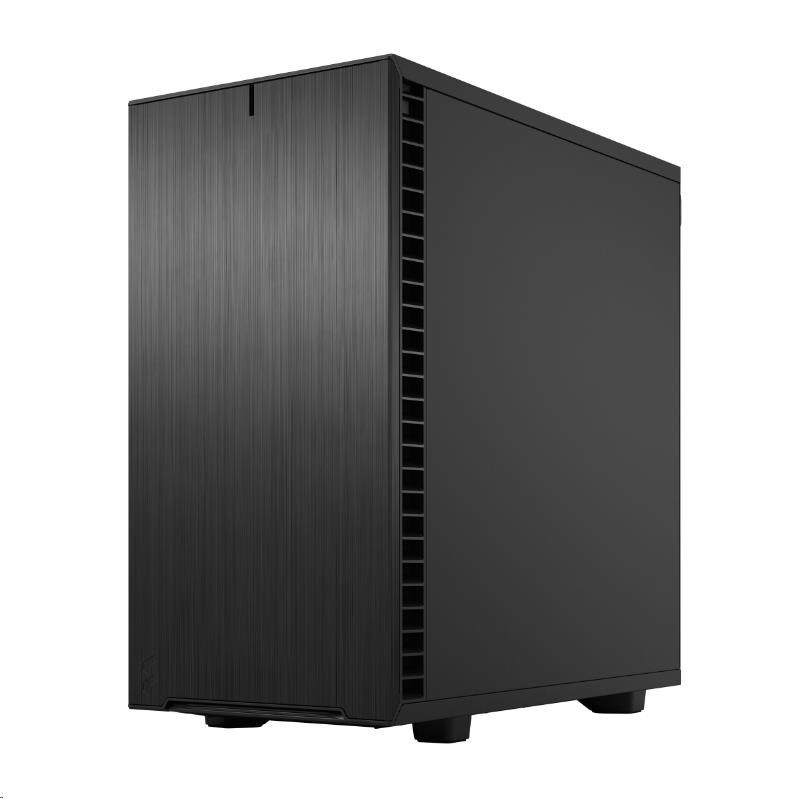

FRACTAL DESIGN skříň Define 7 Mini Black TG Light Tint, USB 3.1 Type-C, 2x USB 3.0, bez zdroje, mATX
Popis a parametre
FRACTAL DESIGN skříň Define 7 Mini Black TG Light Tint, USB 3.1 Type-C, 2x USB 3.0, bez zdroje, mATX
Define 7 Mini
The Define 7 Mini offers the same stylish appeal and many of the life-improving features of its larger siblings, in a streamlined form factor.
- Compact yet spacious interior accommodates mATX and Mini ITX motherboards
- Room for GPUs up to 331 mm with a 240 mm radiator in the top, or 306 mm with 25 mm thick fans in the fronts
- Support for 2x 2.5”/3.5” drives and up to 4x 2.5” drives (2x 2.5” brackets included)
TECHNICAL SPECIFICATIONS
| 3.5"/2.5" drive mounts | 2 (included) |
| Dedicated 2.5" drive mounts | 4 (2 included – note the 8 mm height limit on two of the positions) |
| Expansion slots | 4 |

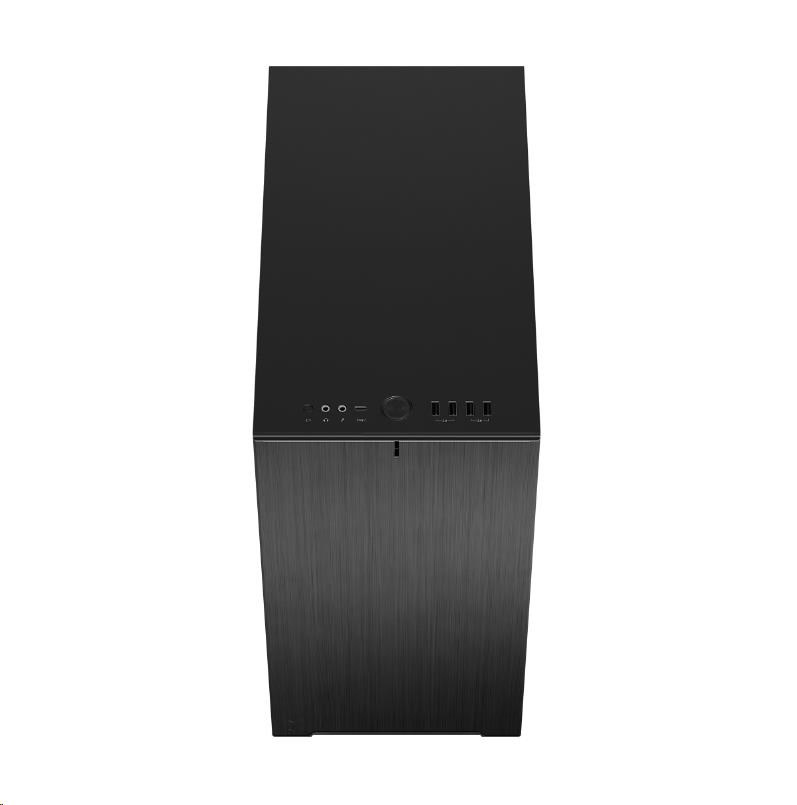

| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio |
| Total fan mounts | 7x 120 mm or 4x 140 mm |
| Front fan | 3x 120/ 2x 140 mm (1x Dynamic X2 GP-14 included) |
| Top fan | 2x 120/140 mm |
| Rear fan | 1x 120 mm (1x Dynamic X2 GP-12 included) |
| Bottom fan | 1x 120 mm (requires HDD Cage to be removed) |
| Dust filters | Top, Front, Bottom and PSU |
| Cable routing space | 15-25 mm |
| Cable routing grommets | Yes |
| Fixed cable ties | Yes |

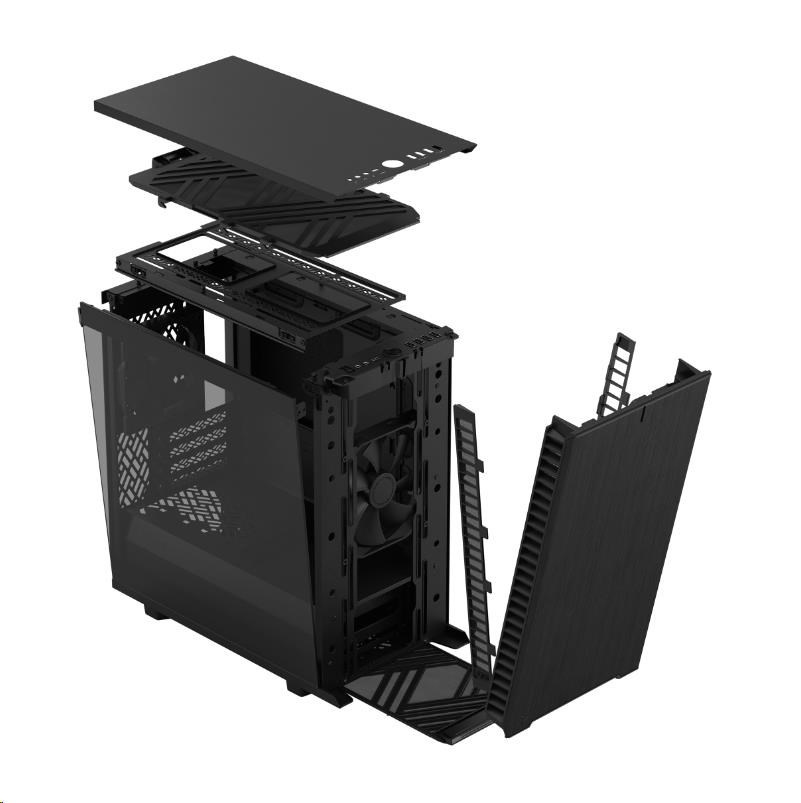

| Tool-less push-to-lock | Top, front and side panels |
| Captive thumbscrews | HDD, SSD and PSU brackets |

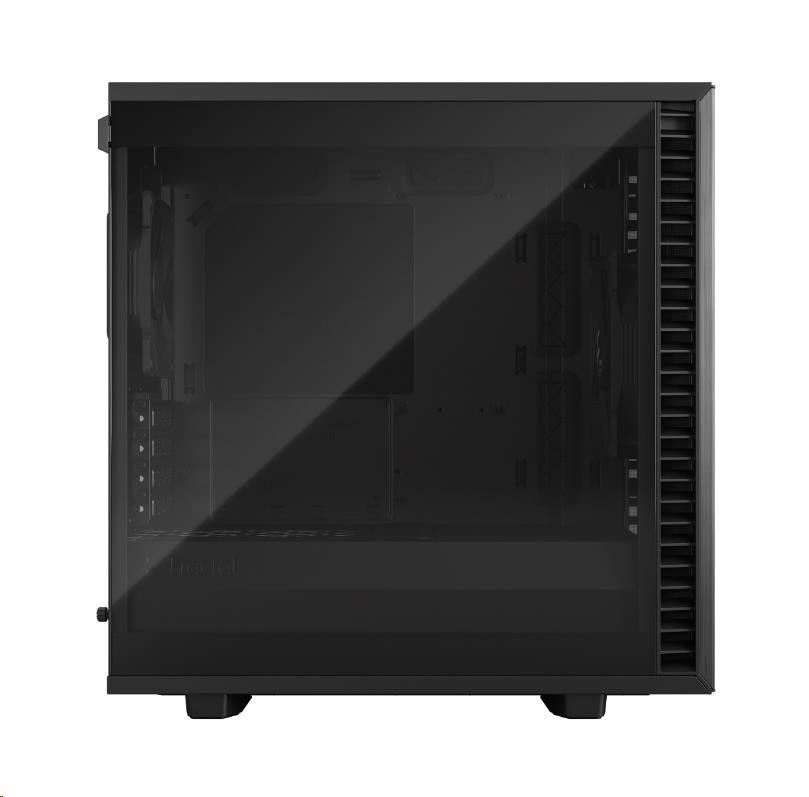

| Left side panel | Industrial sound-damped steel or tempered glass |

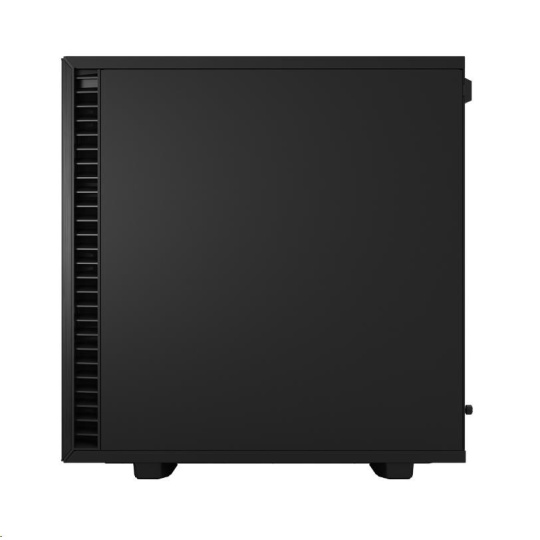

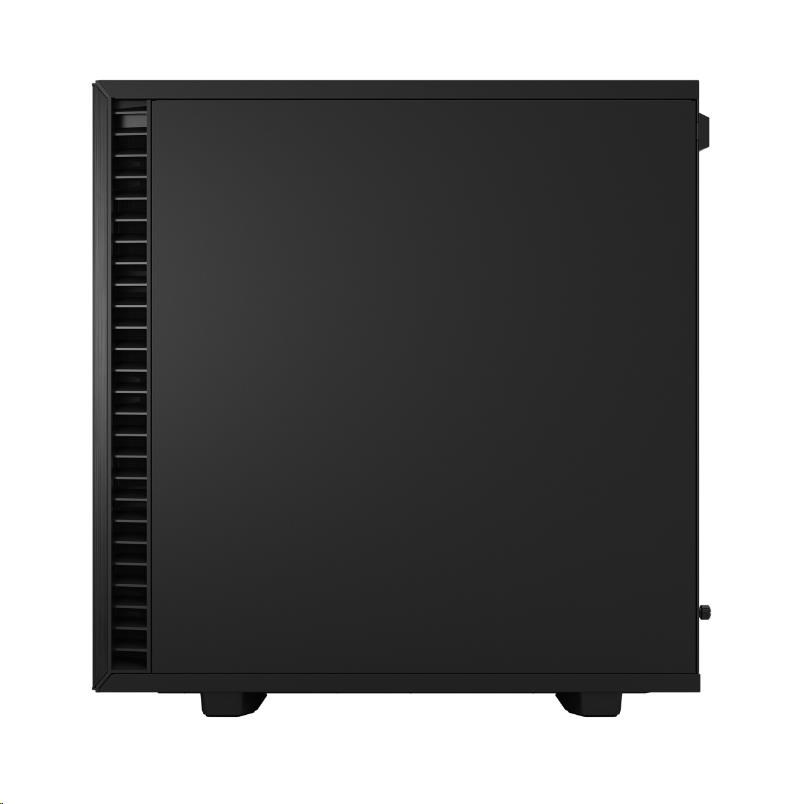

| Right side panel | Industrial sound-damped steel |
.
ParametrePridať do porovnania
Provedení skříně
Mini Tower / micro ATX
Počet pozic 3.5" (HDD)
2
Počet pozic 2.5" (SSD)
4
Vybavení PC skříně
Bez integrovaného zdroje
Vybavení PC skříně
Přední USB panel
Vybavení PC skříně
Přední Audio panel
Bočnice
Prosklená
