Club3D Dokovací stanice USB-C 3v1, 1xVGA, 1xUSB-C, 1xUSB, černá
Popis a parametre
Club3D Dokovací stanice USB-C 3v1, 1xVGA, 1xUSB-C, 1xUSB, černá

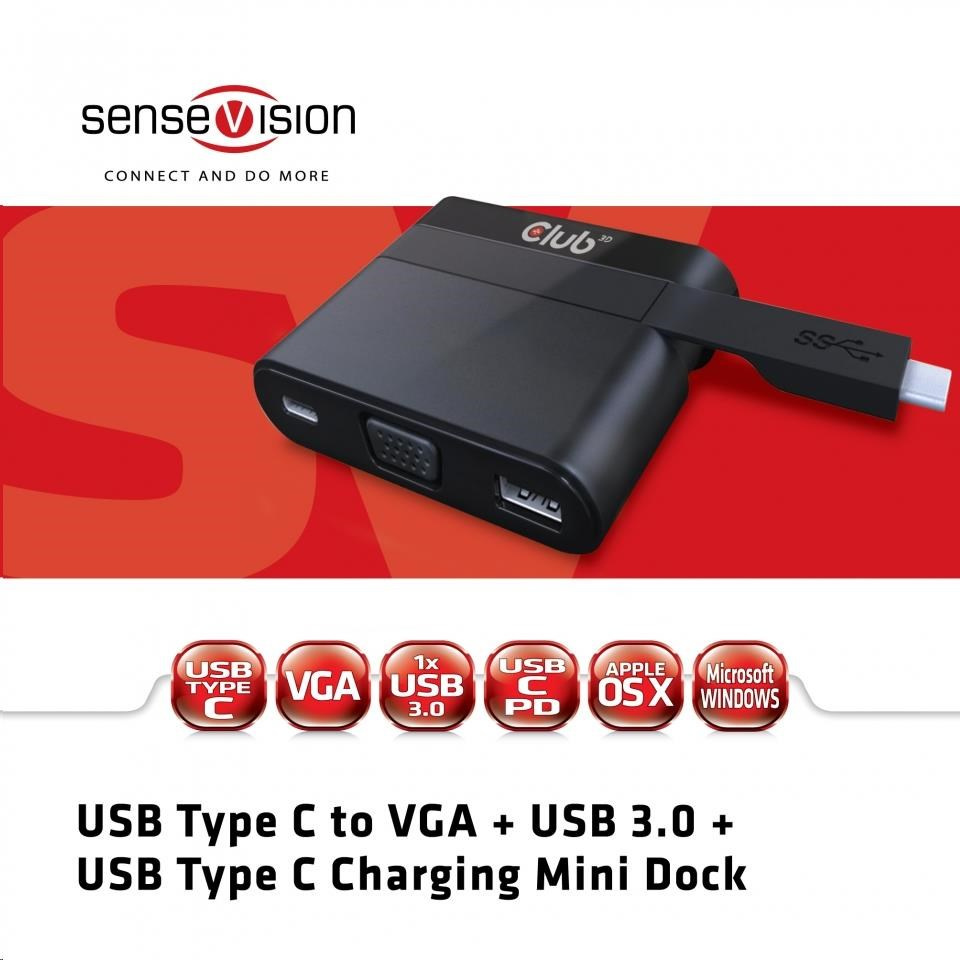

USB Type C to VGA + USB 3.0 + USB Type C Charging Mini Dock

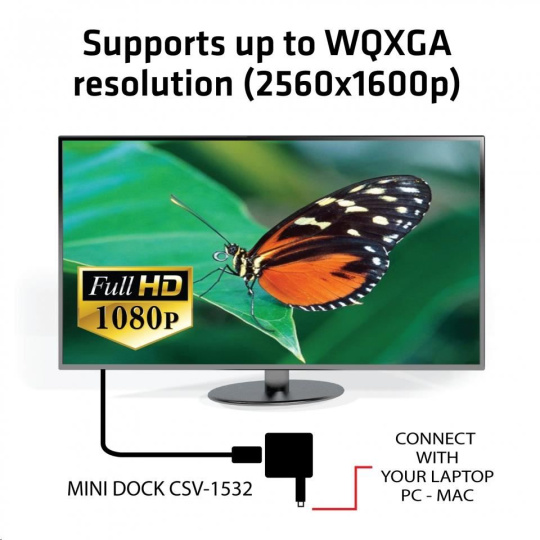

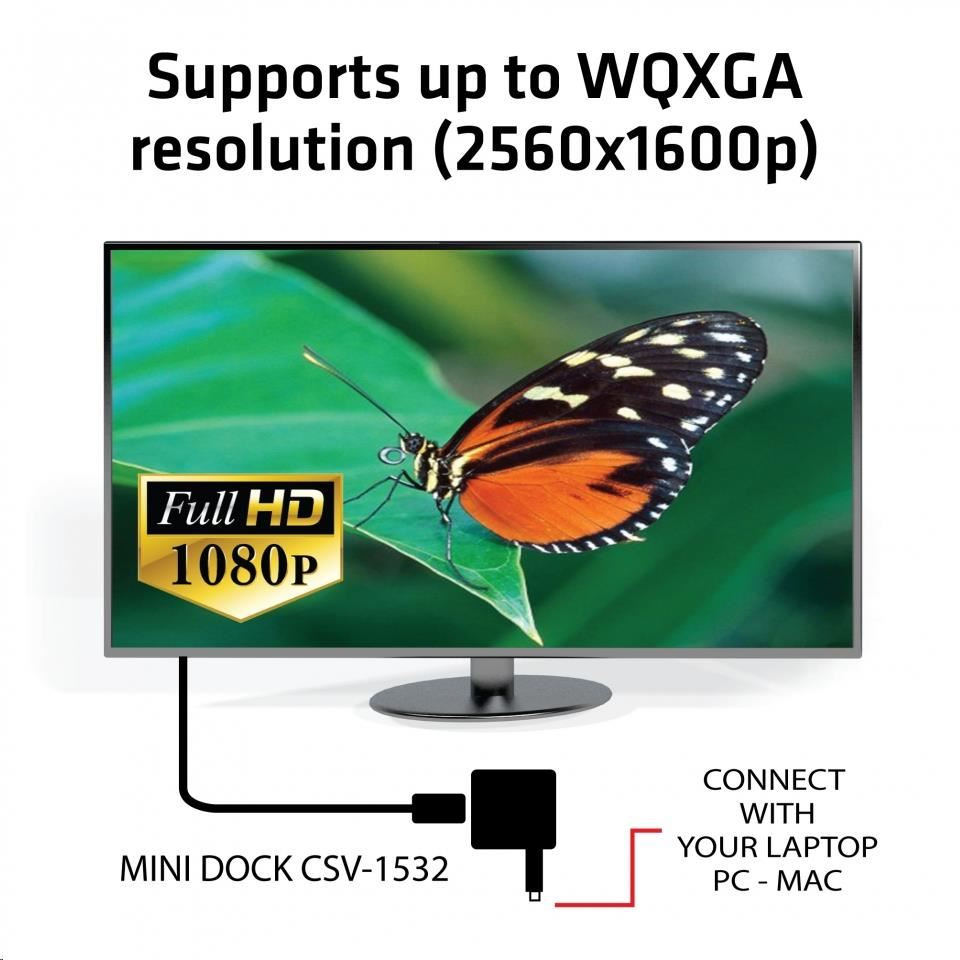

CSV-1532 The SenseVision USB Type C to VGA + USB 3.0 + USB Type C Charging Mini Dock is a portable and indispensable tool for your USB Type-C enabled laptop or Ultrabook featuring DisplayPort™ Alternate Mode. Add an analog VGA monitor with up to WQXGA 2560x1600p resolution through the D-Sub output while the USB 3.0 Type-A port connects your USB Sticks, Peripherals and HDD’s.
It also offers a Type-C PD input which charges your device with up to 60Watt at the same time. Supports Microsoft Windows® and Apple OS X, requires DisplayPort™ Alt Mode.
TECHNICAL SPECIFICATIONS
| Product Name | USB 3.0 Type-C to VGA and USB Mini Docking Station |
| Product Series | SenseVision |
| Weight | 51g |
| Connector Length | 55mm |
| Item Code | CSV-1532 |
| EAN | 8719214470487 |
| UPC Code | 841615100613 |
| Interface | 1x USB 3.0 Type-C male |

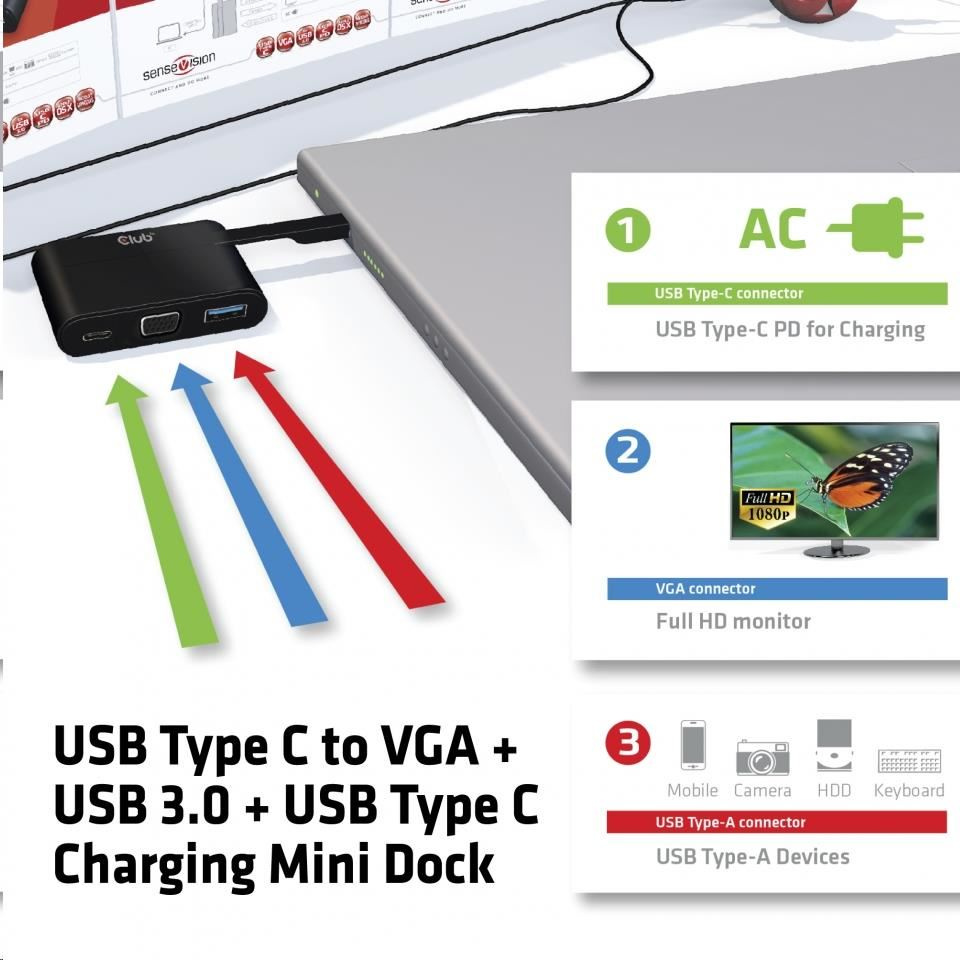

| Output Configuration | 1x D-Sub VGA female 1x USB 3.0 Type-A female (for Data) 1x USB 3.0 Type-C female (for Charging) |
| Package Contents | SenseVision USB 3.0 Type C to VGA and USB Mini Docking Station Quick install guide |

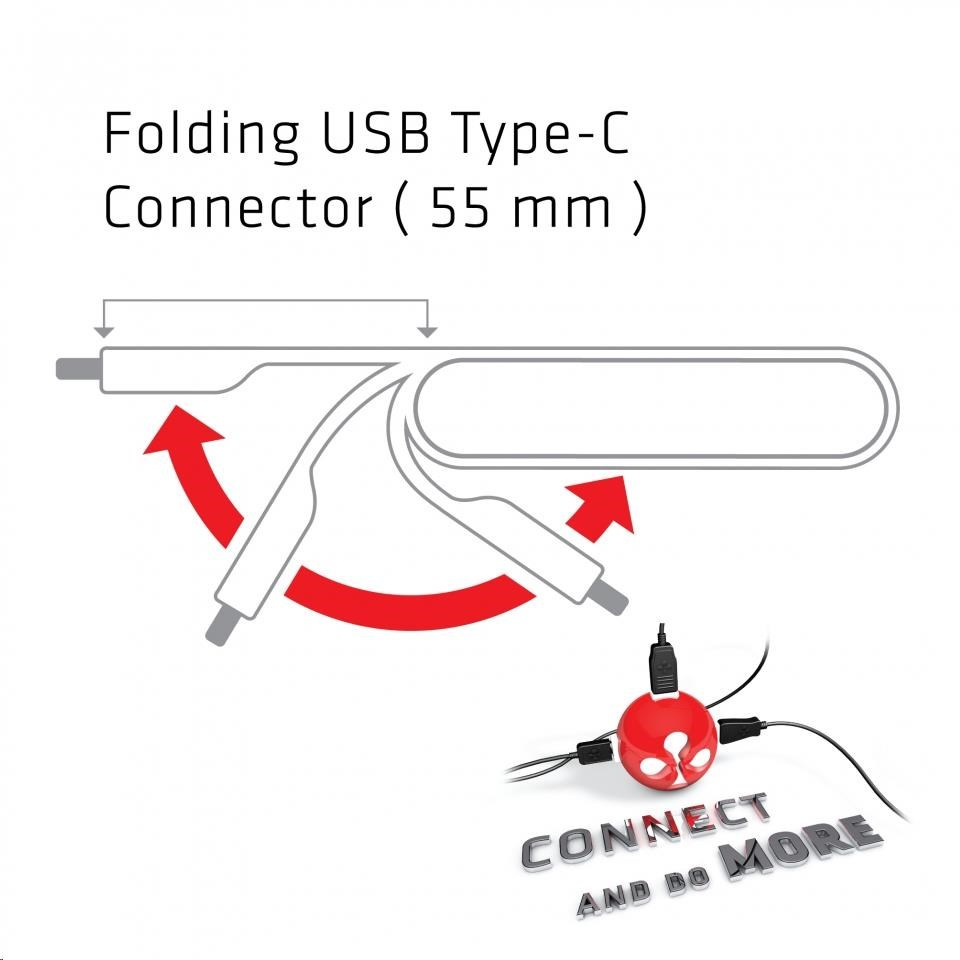

| Features | Innovative Portable Design Folding USB Type C Connector Supports analog VGA monitor Supports up to 270MHz video pixel clock Supports up to WQXGA resolution (2560x1600p) 1x USB 3.0 (3.1 Gen1) Type-A port for Data (max 5Gbps) 1x USB Type C PD port (5V/ 1.5A, 20V/3A) Requires Type C DisplayPort™ Alt Mode |
| Miminum Requirements | CPU: AMD or Intel Dual Core CPU 2GHz or higher processor clock. GPU: AMD, Intel or Nvidia RAM: 1GB or higher USB port: Type C must support DisplayPort™ Alt Mode 30MB of available disk space |
| Supported Operating Systems | Windows 7 (32 & 64 Bit) Windows 8.1 (32 & 64 Bit) Windows 10 (32 & 64 Bit) Apple OS X |
.
ParametrePridať do porovnania
Počet USB-C
1
Počet USB-A
1
Počet VGA portů
1
PD (max.W)
60
LAN
Ne
SD karta
Ne
Audio
Ne
VESA podpora
Ne
Max. počet ext.monitorů
1
