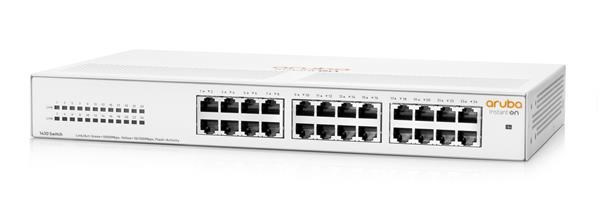

HPE Networking Instant On Switch 24p Gigabit 1430 R8R49A

Name: HPE Networking Instant On Switch 24p Gigabit 1430 R8R49A
Brand: Hewlett Packard Enterprise
SKU: 1881018
Price: 162 EUR
Availability: InStock

-7%

Kód: 1881018

EAN: 190017602424

Záruka: 99 Doživotní

Výrobca: Hewlett Packard Enterprise

Pridať do obľúbených Pridať do porovnania Otázka pre predajcu Stráženie produktu

Popis a parametre

HPE Networking Instant On Switch 24p Gigabit 1430 R8R49A

ParametrePridať do porovnania

Maximálny počet portov

Prevedenie

Desktop

Prevedenie

Rack mounted 19"

Technológia

Gigabit Ethernet 1000Mbps

Management

Nie

Funkce

QoS (Quality of service)

Funkce

PoE budget (W)

Přenosová rychlost LAN (Mb/s)

Počet portů LAN

Podporované standardy PoE

Žádný

Ventilátor

Počet portů LAN

Maximální počet portů

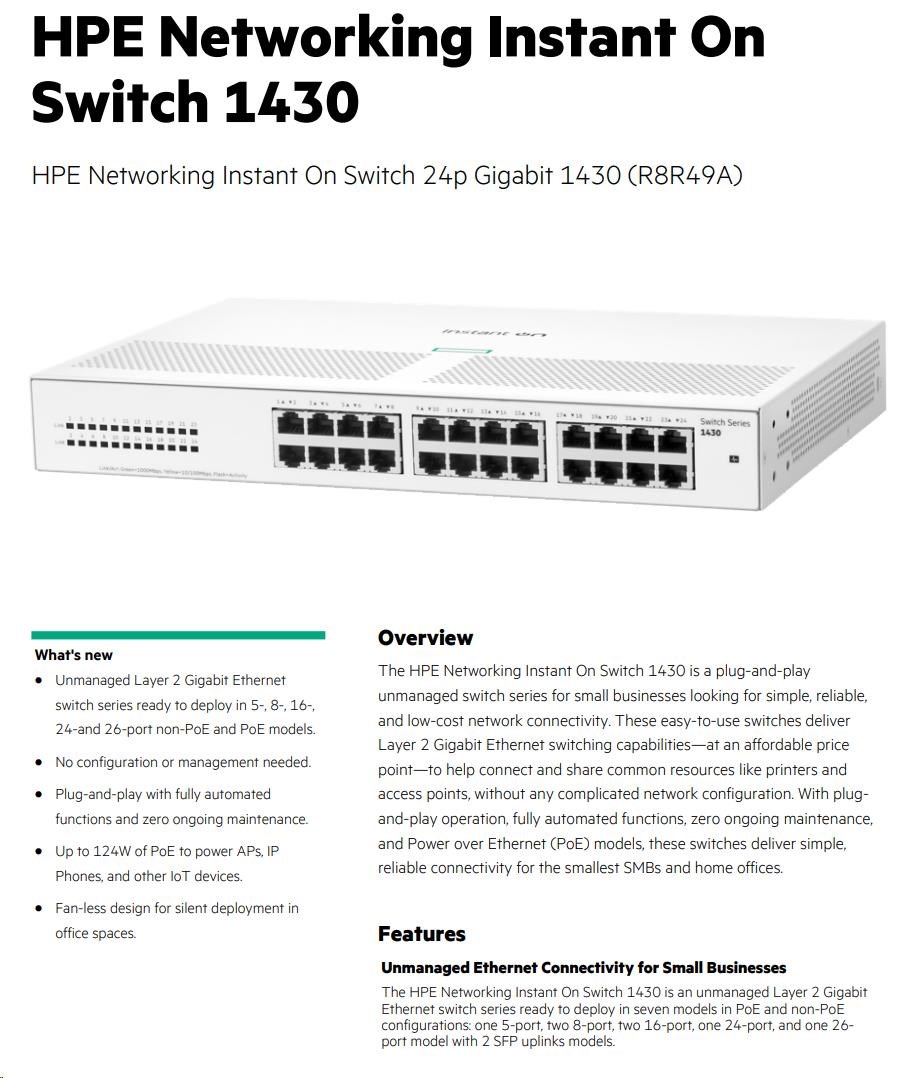

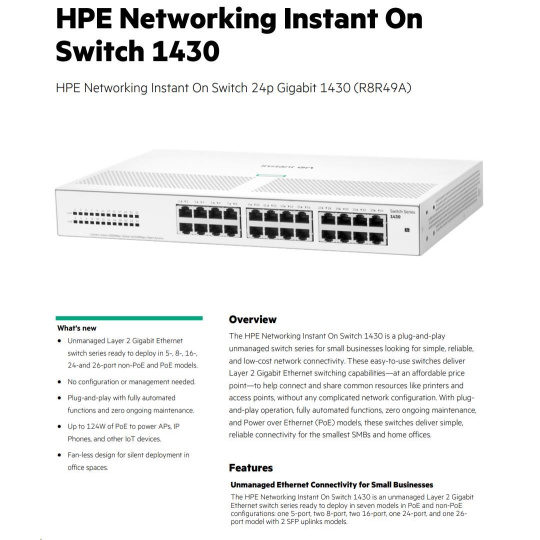

HPE Networking Instant On Switch 24p Gigabit 1430 R8R49A

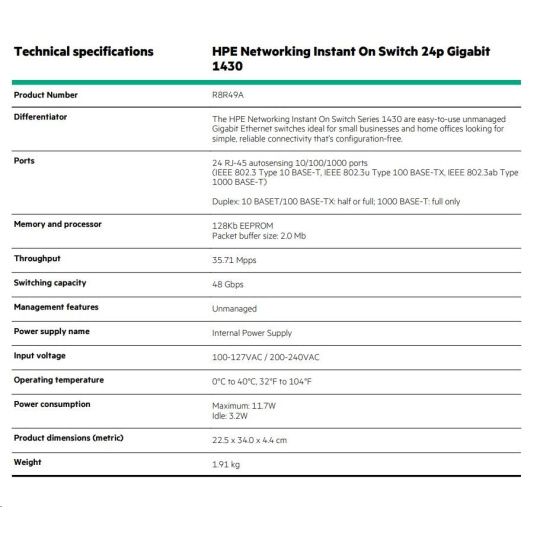

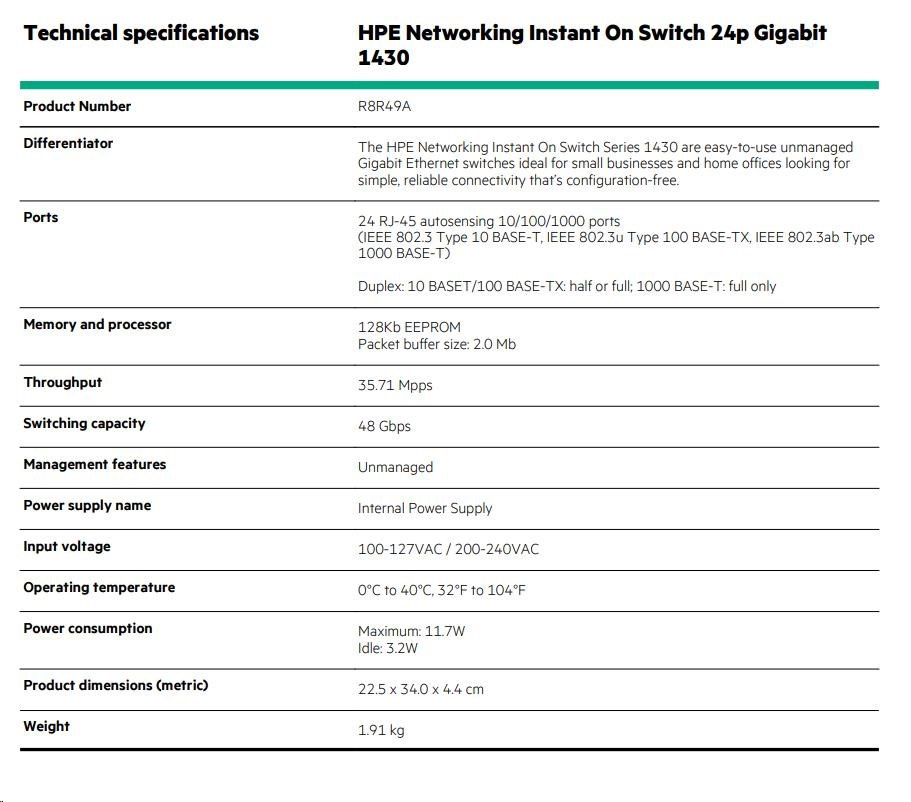

Aruba Instant On 1430 24G Switch (R8R49A)

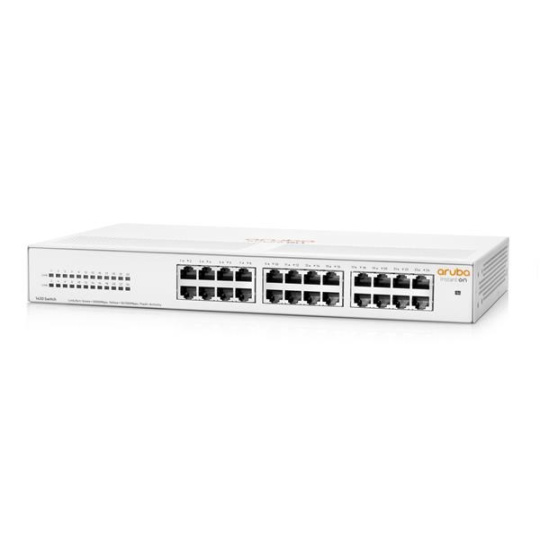

I/O ports and slots		24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Physical Characteristics
Dimensions		225(d) x 340(w) x 44(h) mm
Weight		4.20 lb (1.91 kg)
Processor and Memory		128Kb EEPROM; Packet buffer size: 2.0 Mb
Performance
100 Mb latency		< 2.7 µSec
1000 Mb latency		< 1.80 µSec
Throughput (Mpps)		35.71 Mpps
Capacity		48 Gbps
MAC address table size		8192 entries
Reliability MTBF (years)		199.5
Environment
Operating temperature		32°F to 104°F (0°C to 40°C)
Operating relative humidity		15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/ storage temperature		-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/ storage relative humidity		15% to 90% @ 149°F (65°C) non-condensing
Altitude		up to 10,000 ft (3 km)
Acoustics		Fanless

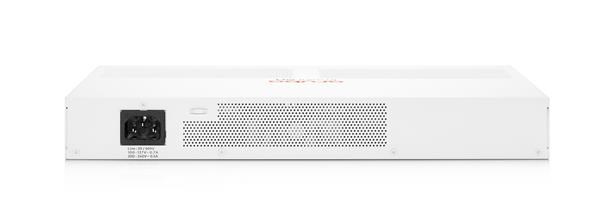

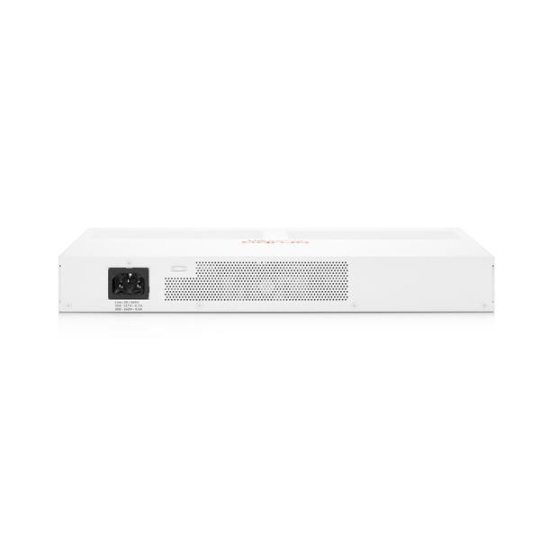

Electrical Characteristics
Frequency		50Hz/60Hz
AC voltage		100-127VAC / 200- 240VAC
Current		0.3A / 0.2A
Maximum power rating		11.7W
Idle power		3.2W
PoE power		-
Power Supply		Internal Power Supply
Safety		EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 3rd. Ed. EN/IEC 60825- 1:2014 Class 1
Emissions		EN 55032:2015/ CISPR 32, Class A FCC CFR 47 Part 15: 2018, Class A ICES-003, Class A VCCI-32, Class A CNS 13438, Class A KS C 9832, Class A AS/NZS CISPR 32, Class A
Immunity		BS/EN 55035, CISPR 35, KS C 9835
Generic		EN 55035, CISPR 35
EN		EN/IEC 61000-4-2
ESD		EN/IEC 61000-4-3
Radiated		EN/IEC 61000-4-4
EFT/Burst		EN/IEC 61000-4-5
Surge		EN/IEC 61000-4-6
Conducted		EN/IEC 61000-4-8
Power frequency magnetic field		EN/IEC 61000-4-11
Voltage dips and interruptions		EN/IEC 61000-3-2
Harmonics		EN /IEC 61000-3-3
Device Management		Unmanaged
Mounting
Mounting positions and supported racking		Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting using the brackets provided Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down
Transceivers
