20 x Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch

Prevedenie:Rack mounted 19"; Technológia:Gigabit Ethernet + 10 GbE porty; Maximálny počet portov:48; Vlastnosti switche:Rozšíriteľnosť.... viac
Bežná cena: 16 104  (-19%)
10 786.78 € bez DPH
Na dotaz
13 052 €
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Popis a parametre

20 x Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch

20 x Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch

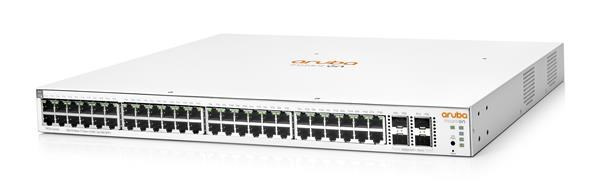

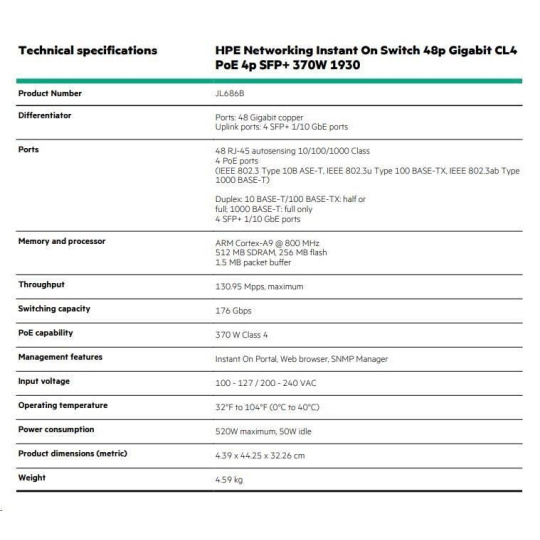

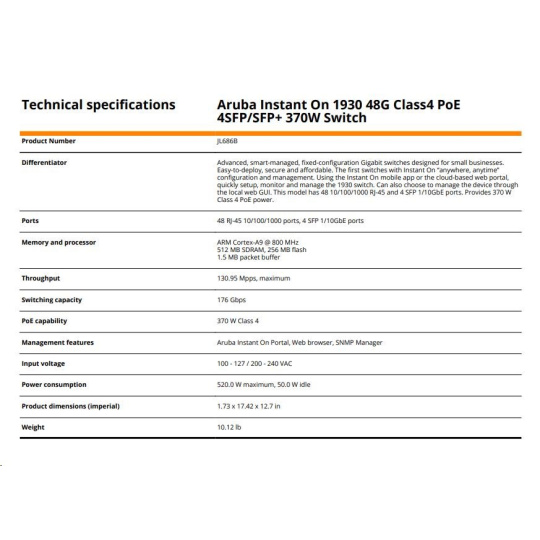

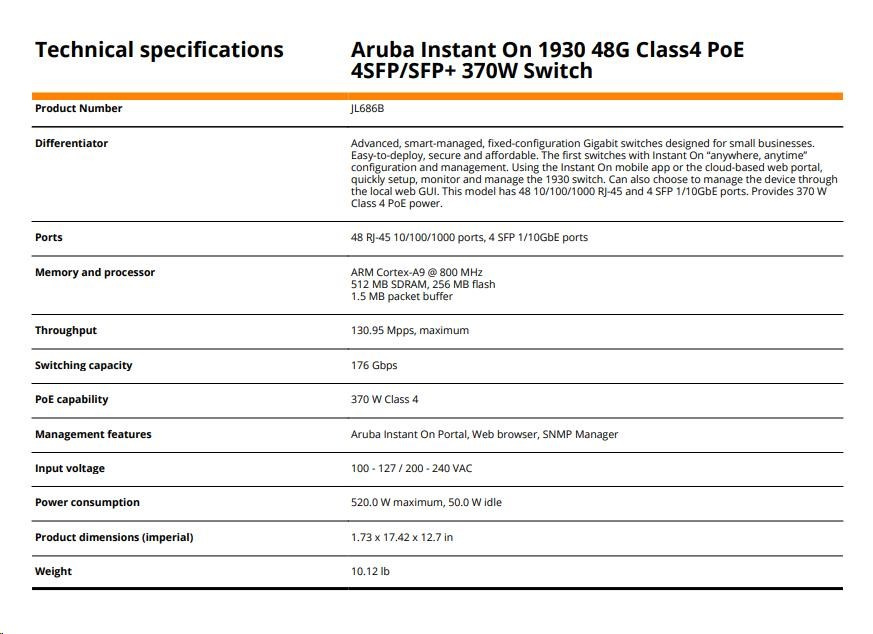

Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch (JL686B)

I/O Ports and Slots

48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 SFP+ 1/10GbE ports

Physical Characteristics

Dimensions

17.42(w) x 12.7(d) x 1.73(h) in

(44.25 x 32.26 x 4.39 cm)

(1U height)

Weight

10.12 lb (4.59 kg)

CPU

ARM Cortex-A9 @ 800 MHz

Memory And Flash

512 MB SDRAM

256 MB flash

Packet Buffer

1.5 MB

Performance

100 Mb latency

< 4.5 uSec

1000 Mb latency

<2.2 uSec

10000 Mb latency

<1.2 uSec

Throughput (Mpps)

130.95 Mpps

Capacity

176 Gbps

Routing table size (# of static entries)

32

MAC address table size (# of entries)

16,000

Reliability MTBF (years)

114

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

Non-operating temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating relative humidity

15% to 95% @ 140°F (60°C)

Altitude

Up to 10,000ft (3.048 Km)

Acoustic1

LWAd = 3.7 Bel

LpAm (Bystander) = 29 dB

Notes: 1Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)

Electrical Characteristics

Frequency

50-60 Hz

AC voltage

100 - 127 / 200 - 240 VAC

Current

5.2 A/2.6 A

Maximum power rating

465.6W

Idle power

38.3W

PoE power

370 W Class 4 PoE

Power supply

Internal power supply

Safety

UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1

UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014

Emissions

VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A

Immunity

Generic

CISPR 24 / CISPR 35

EN

EN 55024:2010 / EN 55035:2017

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

IEC 61000-3-2, EN 61000-3-2

Flicker

IEC 61000-3-3, EN 61000-3-3

Device Management

Aruba Instant On Cloud; Web browser; SNMP Manager

Mounting

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rackmounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using the brackets provided

Transceivers

Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A )

Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)

Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver (R9D17A)

Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)

Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)

.
Maximální počet portů
48
Provedení
Rack mounted 19"
Technologie
Gigabit Ethernet + 10 GbE porty
Vlastnosti switche
Rozšiřitelnost
Funkce
VLAN (virtual local area network)
Funkce
PoE (Power over ethernet)
Funkce
L2
Funkce
L3
Funkce
L4
Funkce
QoS (Quality of service)
Funkce
VPN
Funkce
Web management/Smart switch
Funkce
DHCP snooping
Funkce
Stohovatelnost
PoE budget (W)
370
Počet PoE Out portů
48
Počet SFP portů
4
Přenosová rychlost LAN (Mb/s)
133
Počet SFP+ portů
4
Počet portů LAN
48
Podporované standardy PoE
802.3at
Podporované standardy PoE
802.3af
Ventilátor
Ano
Počet portů SFP28
4
Počet portů LAN
48
Maximální počet portů
48
Počet PoE Out portů
48
Počet SFP portů
4
Počet SFP+ portů
4
PoE budget (W)
370
Počet portů SFP28
4
