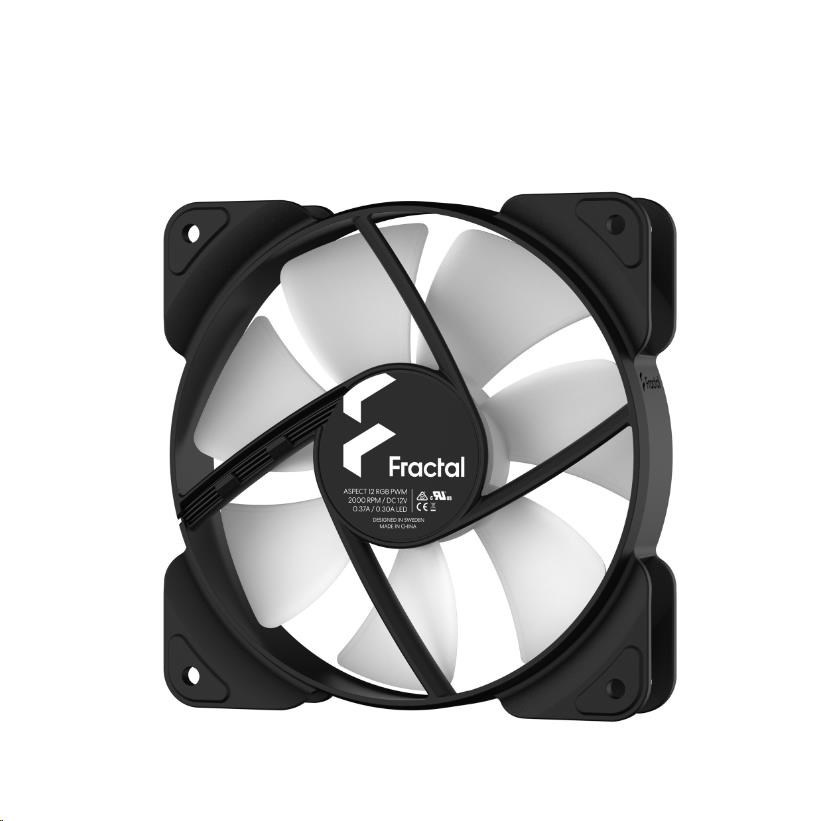

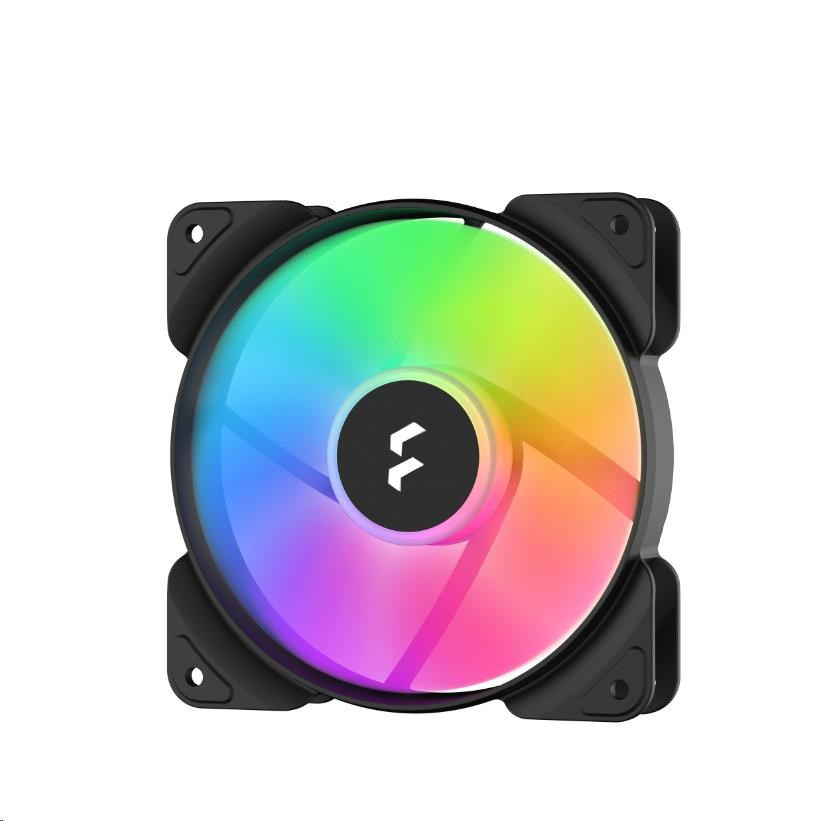

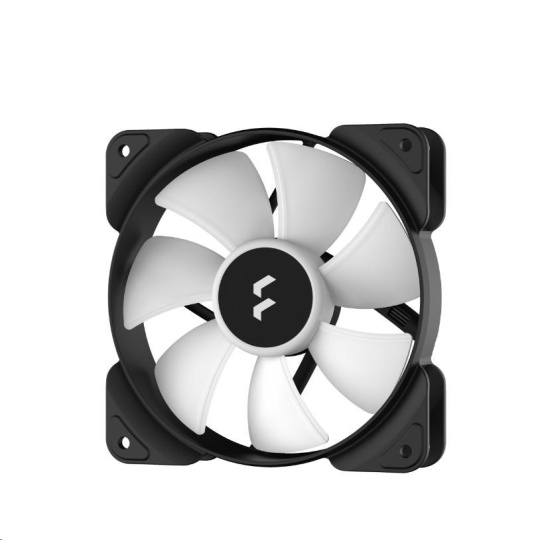

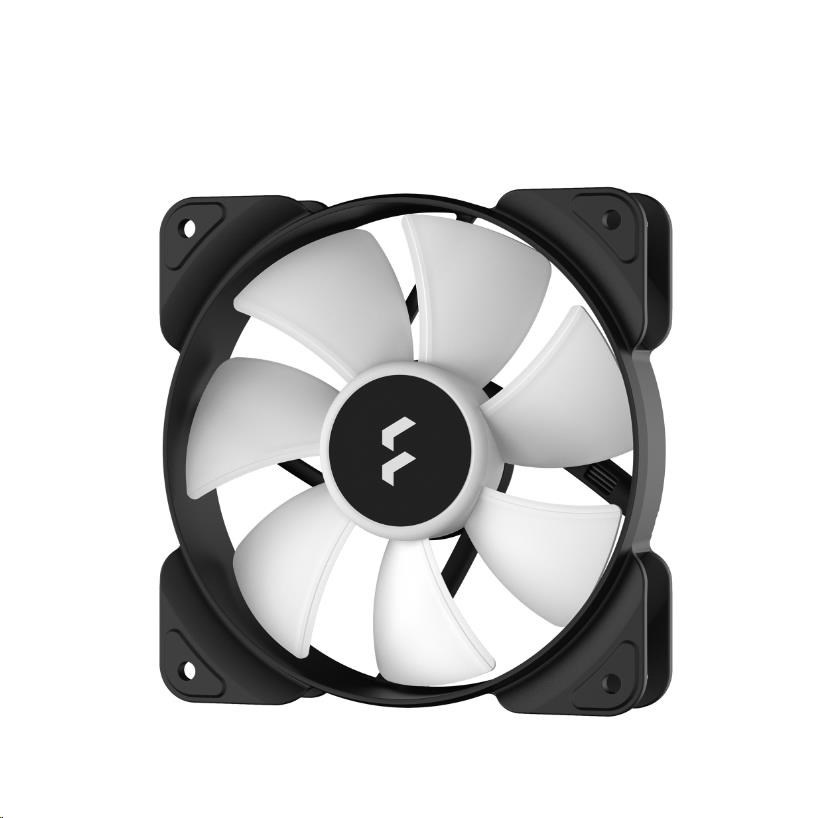

FRACTAL DESIGN ventilátor Aspect 12 RGB PWM Black Frame, 120mm
Popis a parametre
FRACTAL DESIGN ventilátor Aspect 12 RGB PWM Black Frame, 120mm
Aspect 12 RGB PWM
Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.
- Less turbulence thanks to aerodynamic stator struts
- 6 individually addressable hub-mounted RGB LEDs
- PWM control with a wide RPM speed range
TECHNICAL SPECIFICATIONS
| Size | 120 x 120 x 25 mm |
| Screw hole pattern | 105 x 105 mm |
| LED type | Addressable RGB |
| Fan Connector | 4-pin |
| Bearing | Rifle |
| Number of blades | 7 |
| Rotation speed | 500-2000 RPM |
| Noise level | <10 – 33.2 dB(A) |
| Max airflow (CFM) | 13 – 56 CFM |
| Max airflow (m3/h) | 22.1 – 95.1 m3/h |
| Max pressure | 0.23 – 2.34 mm H2O |
| Fan typical input power | 1.68 W |
| Fan max input current | 0.37 A |
| Fan input voltage | 12 V |
| Minimum startup voltage | 7 V |
| LED rated voltage | 5 V |
| LED rated current | 0.3 A |
| LED Rated input power | 1.5 W |
| MTTF | 90.000 h |
| Unit weight | 135 g |
| Cable length | 500 mm |

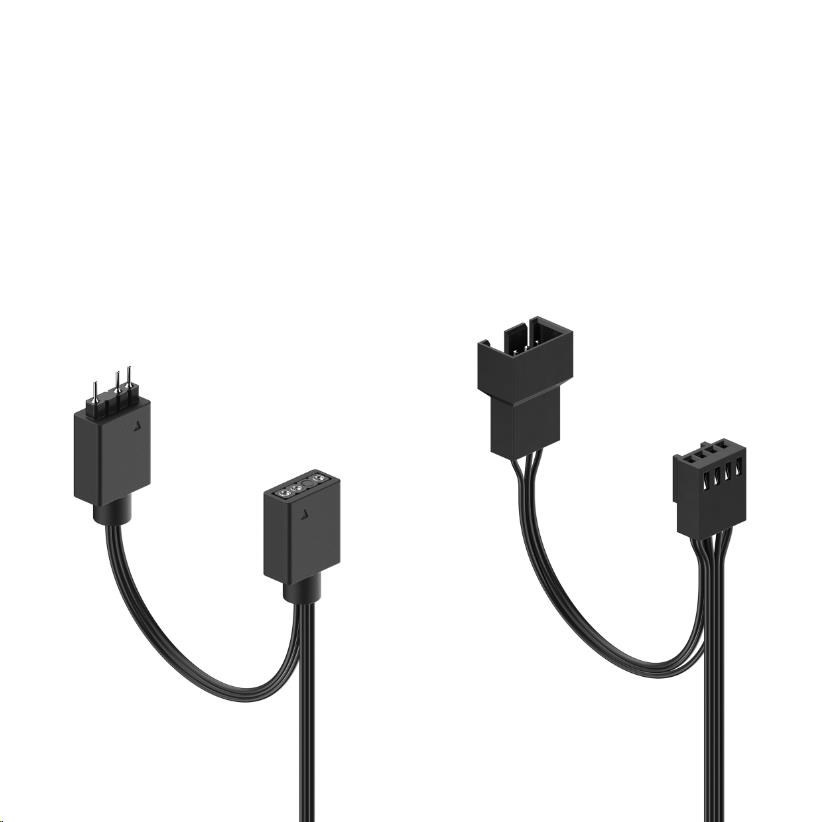

| Cable type | Black/White ribbon (allows chaining) |
.
ParametrePridať do porovnania
Využití chladiče
Do PC skříně
Typ chladiče
Aktivní
Barva podsvícení
RGB
Napájecí konektor
4pin
Velikost ventilátoru
120x120
