Club3D Adaptér HDMI + Micro USB na DisplayPort 4K120Hz/8K30Hz, Active Adapter M/F
Popis a parametre
Club3D Adaptér HDMI + Micro USB na DisplayPort 4K120Hz/8K30Hz, Active Adapter M/F

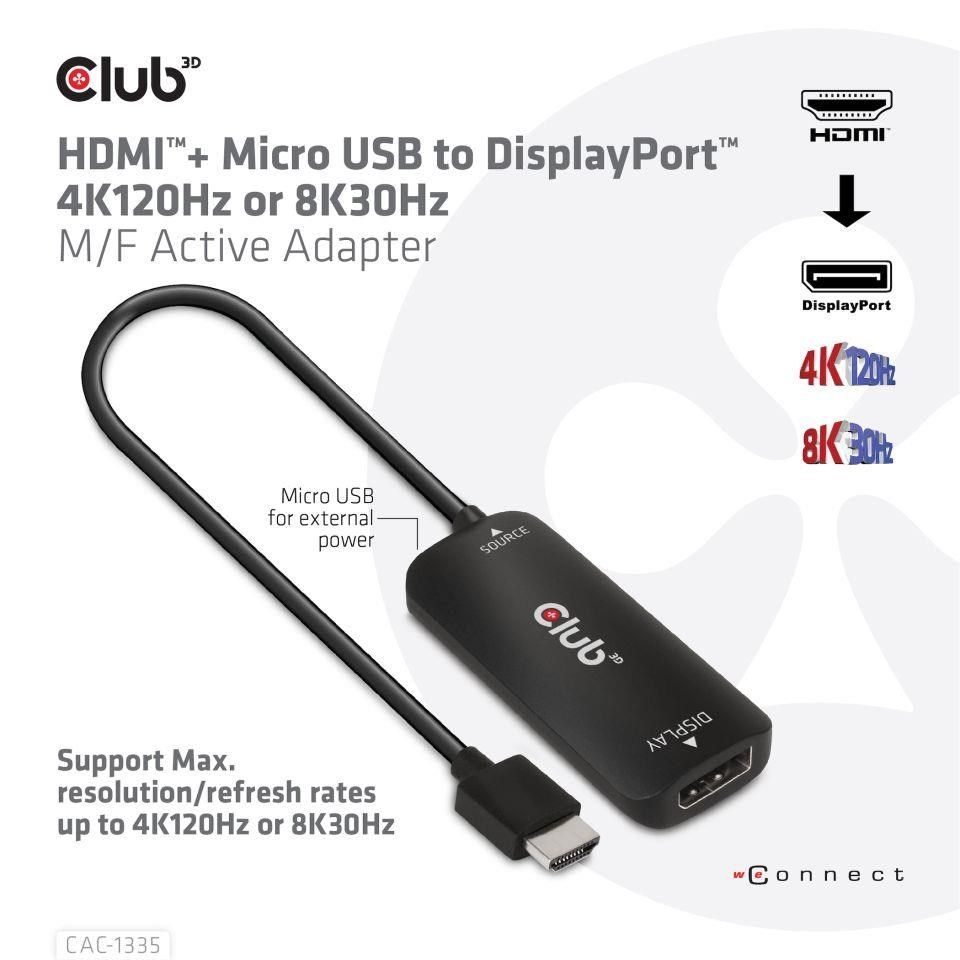

HDMI + Micro USB to DisplayPort 4K120Hz or 8K30Hz M/F Active Adapter
The Club 3D CAC-1335 is the perfect solution to connect to any DisplayPort™ 8K30Hz or 4K120Hz ready displays from a HDMI™ source which does supports these resolutions/specifications.
If you have a PC or any other device that lacks the new DisplayPort™ 8K30Hz or 4K120Hz specifications, the Club3D CAC-1335 will be the simple way to connect your HDMI™ source device to your new 4K120Hz or 8K30Hz display(provided your source supports these resolutions).

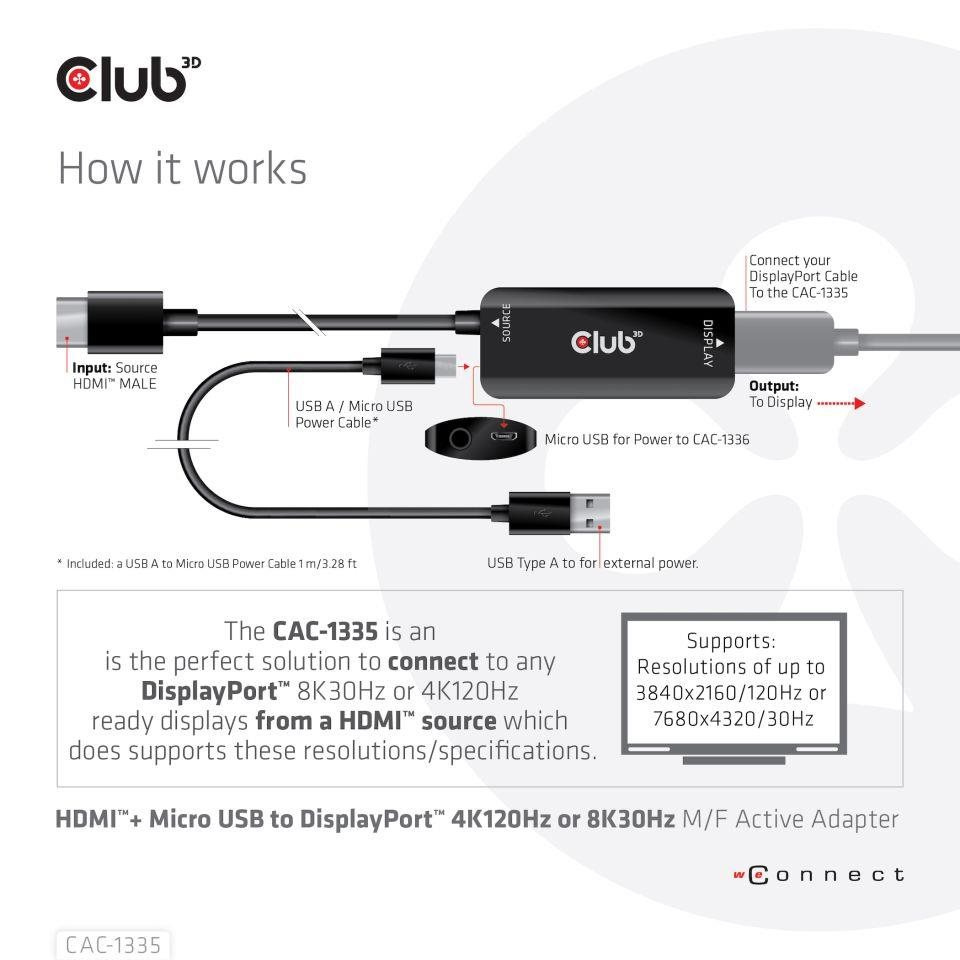

The Adapter is powered thru a Micro USB port(5V/1.5A). An USB Type-A to Micro USB M/M 1m / 3.28 ft is supplied in the box.
- Compliant with VESA DisplayPort™ Specifications up to 3840x2160/120Hz or 7680x4320/30Hz
- Compliant with HDMI™ Specifications up to 3840x2160/120Hz or 7680x4320/30Hz
- Support Max. resolution/refresh rates up to 4K120Hz or 8K30Hz
- Adapter is separatly powered thru a Micro USB Female port 7.5Watt (5V/1.5A)

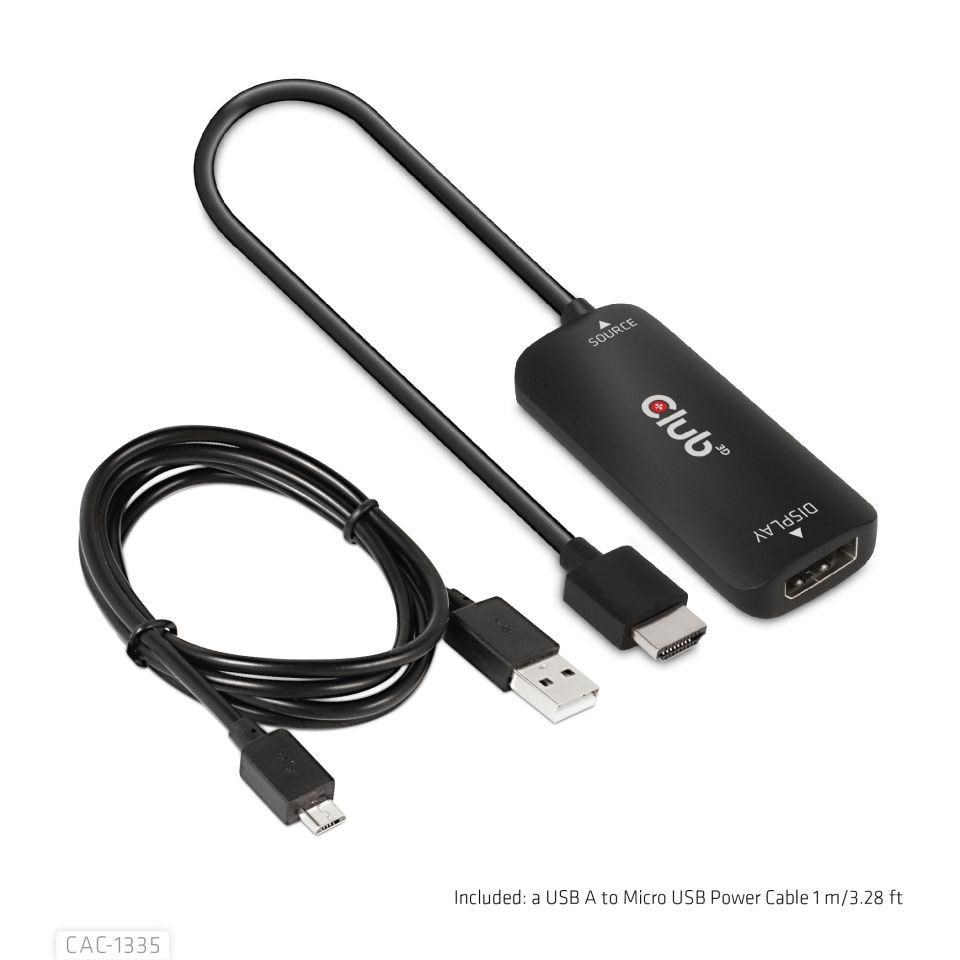

- USB Type-A to Micro USB M/M 1m / 3.28 ft cable is supplied in the box
TECHNICAL SPECIFICATIONS
| OS Support | Microsoft, Mac OS |
| In the box | - CAC-1335 HDMI™+ Micro USB to DisplayPort™ 4K120Hz or 8K30Hz M/F Active Adapter - USB Type-A to Micro USB M/M 1m / 3.28 ft cable for powering the adapter |
| Available Interfaces | Input: - 1x HDMI™ (Male) - 1x Micro USB (Female) Output: 1x DisplayPort™ (Female) |

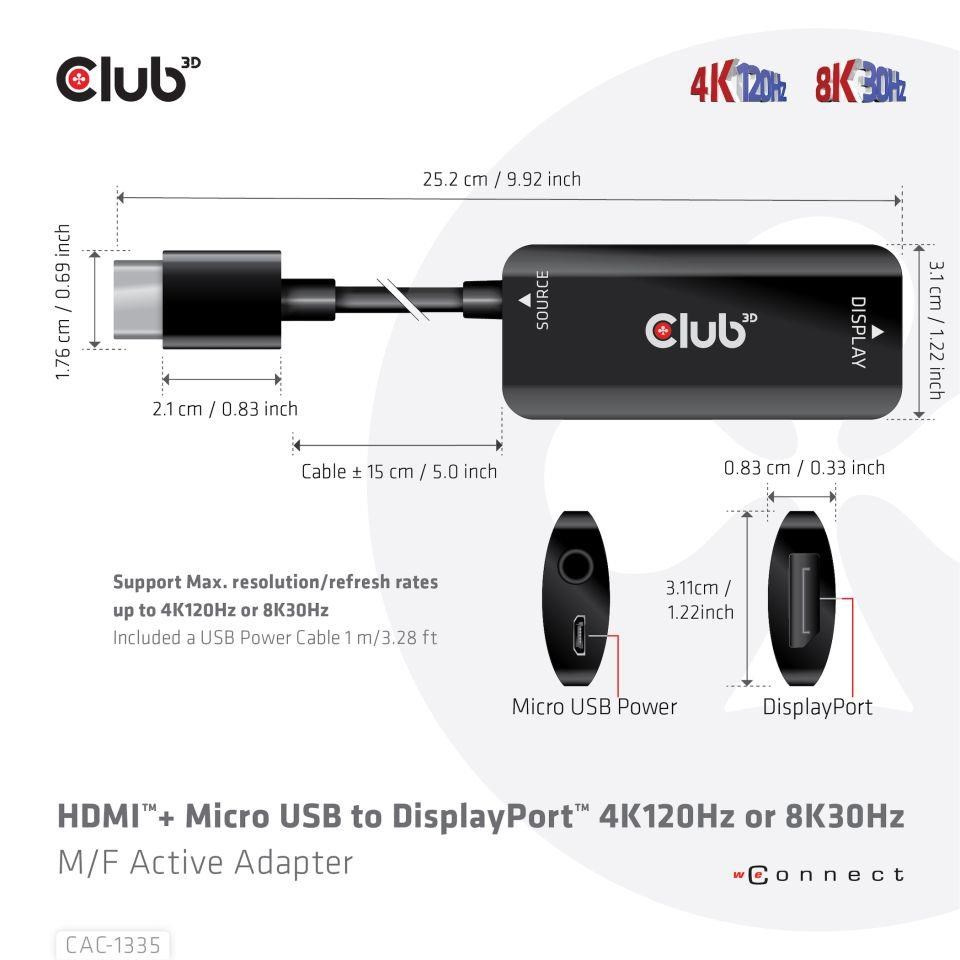

| Other info | - Box size 14.5 x 14.5 x 4.5 cm / 5.71 x 5.71 x 1.77" - Device size: 7.2 x 3 x 1.2 cm / 2.83 x 1.18 x 0.47" - Device Weight: 28 gr / 0.99 oz - Total Cable length: Approx. 26 cm / 10.24" - Power Cable length: 1m / 3.28 Ft - Power Cable Weigth: 21 gr / 0.74 oz - LDPE Bag Weight: 5gr / 0.18 oz - Connector dimensions : - HDMI™ Male: 4 x 0.7 x 1.8 cm / " - USB Type-A Male: 3.7 x 0.7 x 1.5 cm / 1.46 x 0.28 x 0.6" - Micro USB Male: 2.8 x 0.6 x 1 cm / 1.1 x 0.24 x 0.39" - Box Weight: 45 gr / 1.59 oz - Total Weight: 99 gr / 3.5 oz - Meets ROHS, FCC, and CE EMI requirements |
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
.ParametrePridať do porovnania
Špecifikácia kábla / redukcie
Adaptér, Redukce
Input
Micro USB
Input
HDMI
Output
DisplayPort
Club3D Adaptér HDMI + Micro USB na DisplayPort 4K120Hz/8K30Hz, Active Adapter M/F
