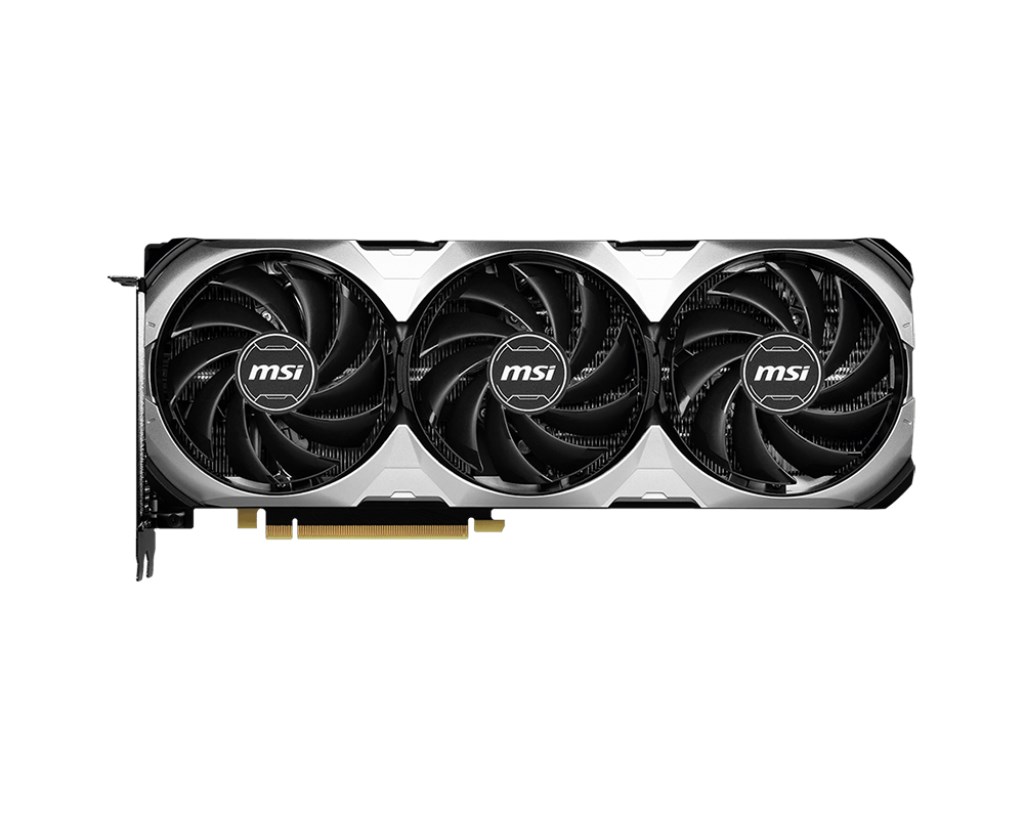

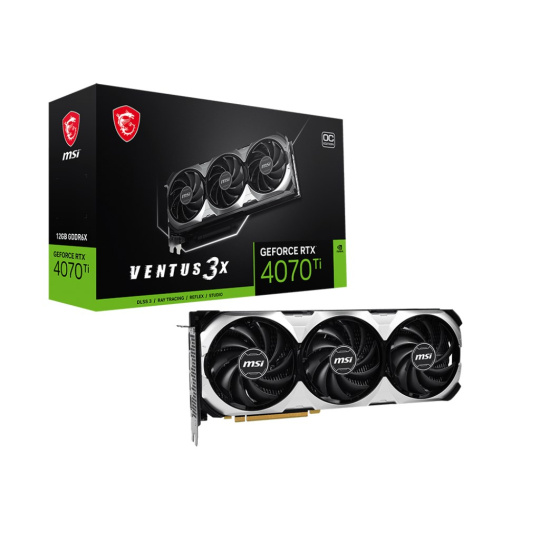

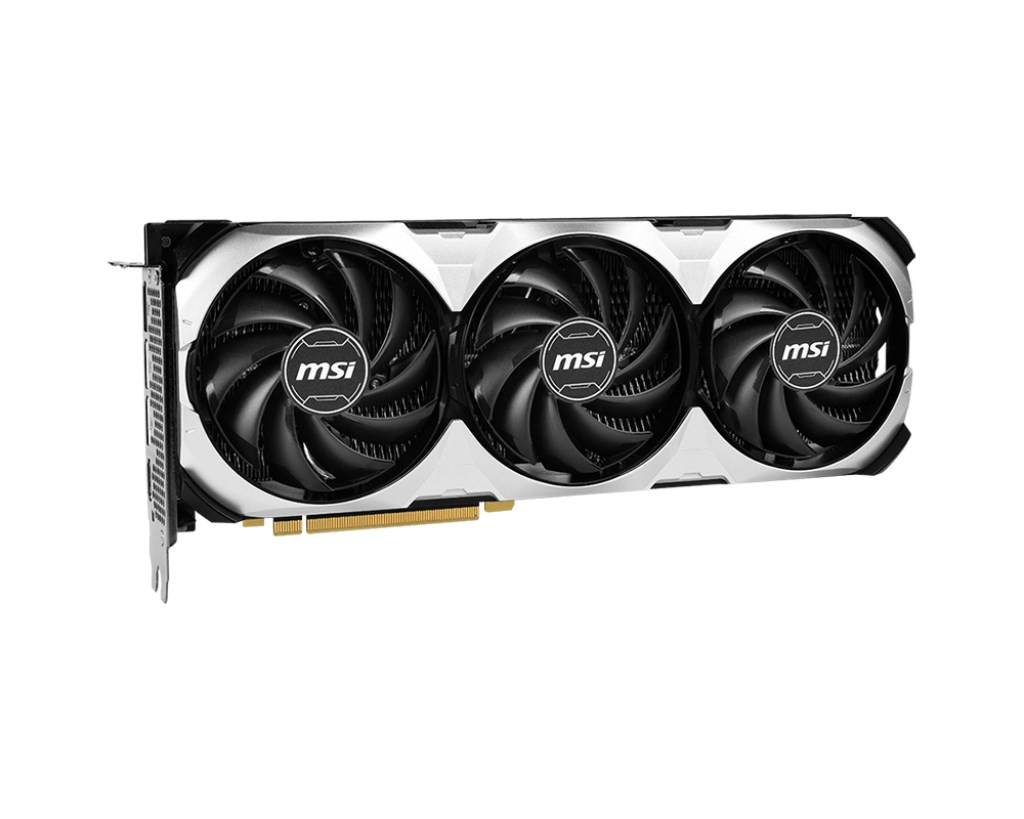

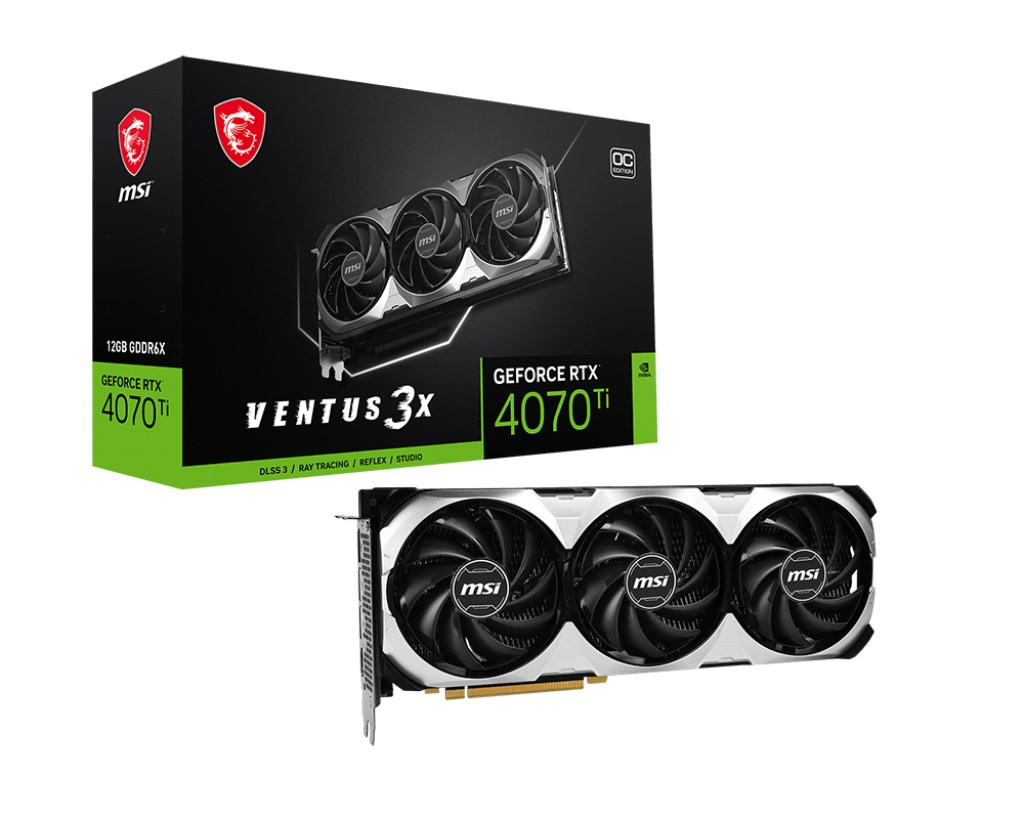

GeForce RTX™ 4070 Ti VENTUS 3X 12G OC

WITH DLSS 3

Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4070 Ti. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.

Boost Clock / Memory Speed

• Boost Clock / Memory Speed
• Extreme Performance: 2655MHz (MSI Center)
• Boost: 2640MHz
• 21 Gbps
• 12GB GDDR6X
• DisplayPort x 3 (v1.4a)
• HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

Triple Fan Thermal Design

• TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
• Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
• Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
• Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.

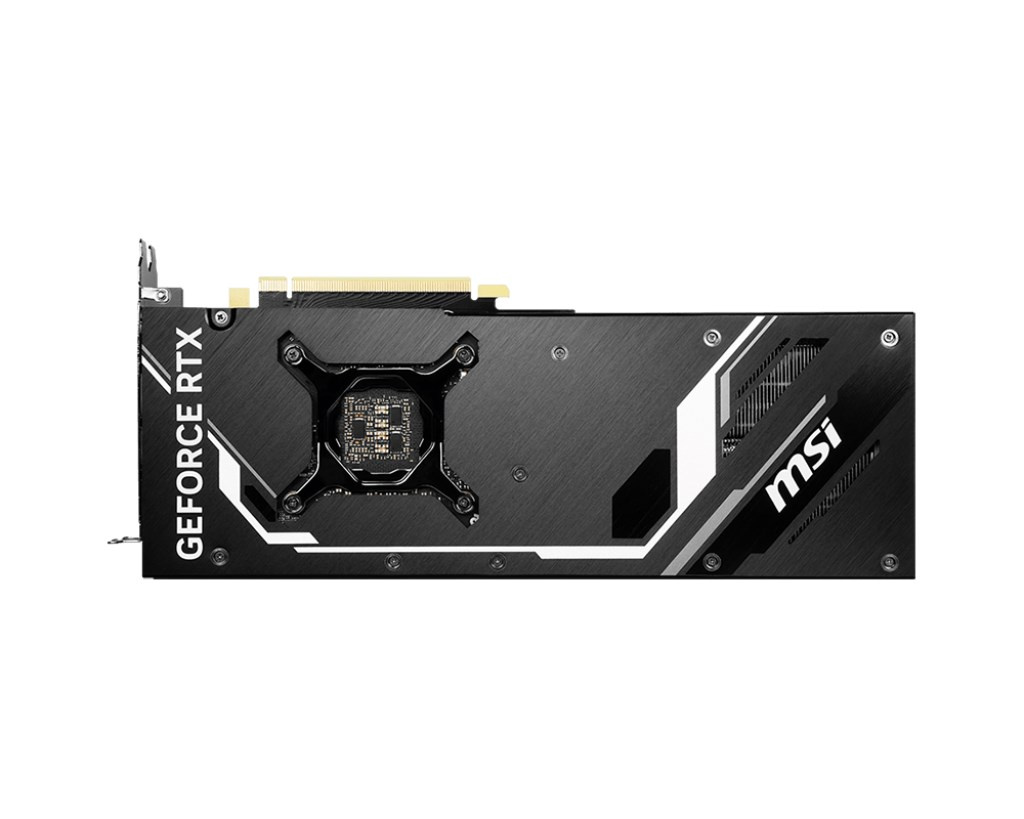

Metal Backplate

• Thermal pads under the sturdy flow-through metal backplate helps with cooling.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.

MODEL NAME

GeForce RTX™ 4070 Ti VENTUS 3X 12G OC

GRAPHICS PROCESSING UNIT

NVIDIA® GeForce RTX™ 4070 Ti

INTERFACE

PCI Express® Gen 4

CORE CLOCKS

Extreme Performance: 2655 MHz (MSI Center)
Boost: 2640 MHz

CUDA® CORES

7680 Units

MEMORY SPEED

21 Gbps

MEMORY

12GB GDDR6X

MEMORY BUS

192-bit

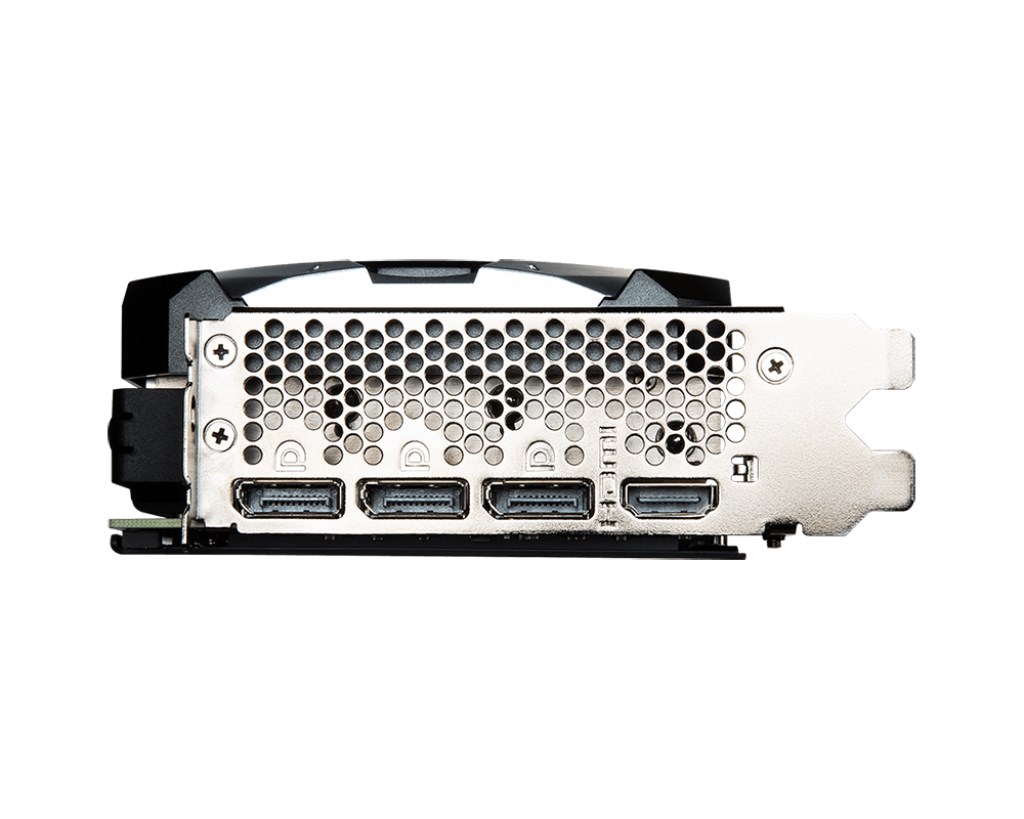

OUTPUT

DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

HDCP SUPPORT

Y

POWER CONSUMPTION

285W

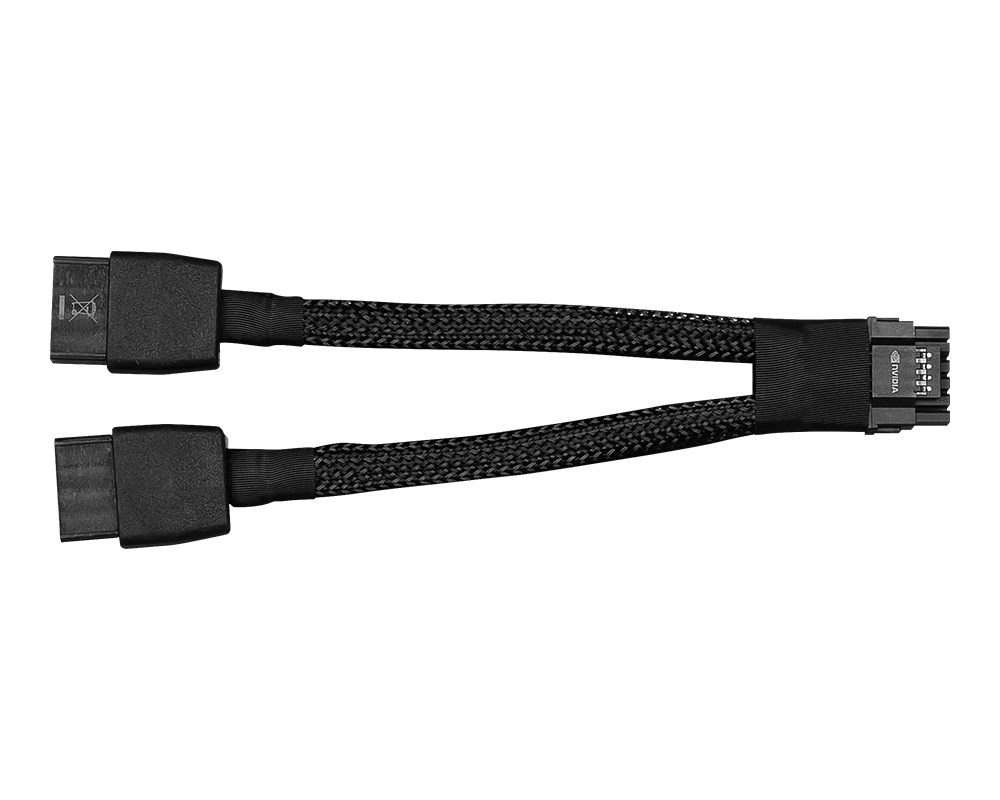

POWER CONNECTORS

16pin x 1

RECOMMENDED PSU

700W

CARD DIMENSION (MM)

308 x 123 x 52 mm

WEIGHT (CARD / PACKAGE)

1150g / 1722g

DIRECTX VERSION SUPPORT

12 Ultimate

OPENGL VERSION SUPPORT

4.6

MAXIMUM DISPLAYS

4

G-SYNC® TECHNOLOGY

Y

DIGITAL MAXIMUM RESOLUTION

7680 x 4320
